Fast dynamic response XCMG XR150D III Rotary Drilling Rig

Description

Engine	Cummins QSB7
Engine Power	150 kW
Engine Speed	2050 r/min
Max. Drilling Diameter	1500 mm
Max. Drilling Depth	56 m

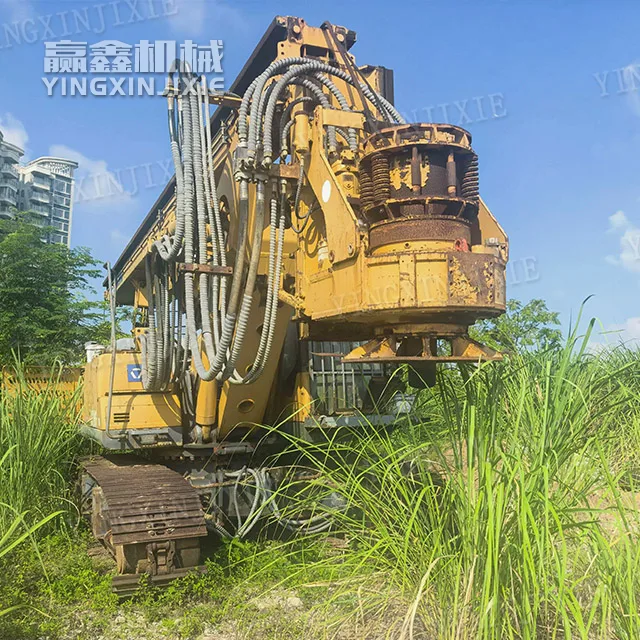

Rotary Head Torque	150 kN·m
Rotary Head Speed	7-33 r/min
Main Winch Pulling Force	160 kN
Crowd System Push Force	120 kN
Crowd System Pull Force	160 kN
Main Winch Max. Speed	72 m/min

Power and Hydraulic System

Equipped with Cummins turbocharged engine, the power reserve is sufficient to meet the requirements of National III/Euro III emissions, with strong reliability and good fuel consumption control.
Kawasaki’s main hydraulic components adopt a combination of ultimate power and negative flow control, distributing power according to demand, energy-saving, fast response, and high drilling efficiency in hard formations.
Single row rope main winch design reduces the repeated bending and wear of steel wire rope, and extends the service life of steel wire rope; Equipped with drilling depth detection, the depth reading is accurate.

Chassis and structural stability

The hydraulic telescopic special track chassis widens and improves the stability of the entire machine during operation, and the transition can be narrowed to meet the transportation needs of flatbed trucks without dismantling the tracks, resulting in low transition costs.
Large diameter slewing bearing+double box variable amplitude triangular structure, with a total weight of 49 tons and strong anti overturning ability; The maximum climbing slope of the track is 40%, and it has good adaptability to the construction site.
The drilling mast has strong rigidity, supports automatic/manual verticality adjustment, and has high accuracy in drilling verticality. It is suitable for small and medium-sized pile foundation projects in building construction and municipal engineering.

intelligent control system

CAN bus+PLC intelligent electronic control, color large screen, real-time display of drilling depth, inclination angle, pressure, built-in intelligent fault diagnosis of the whole machine, convenient for quick troubleshooting.
Equipped with a remote GPS monitoring platform as standard, it allows for remote viewing of working conditions, positioning, and fault warnings, making it convenient for fleet management and very practical for rental projects.
