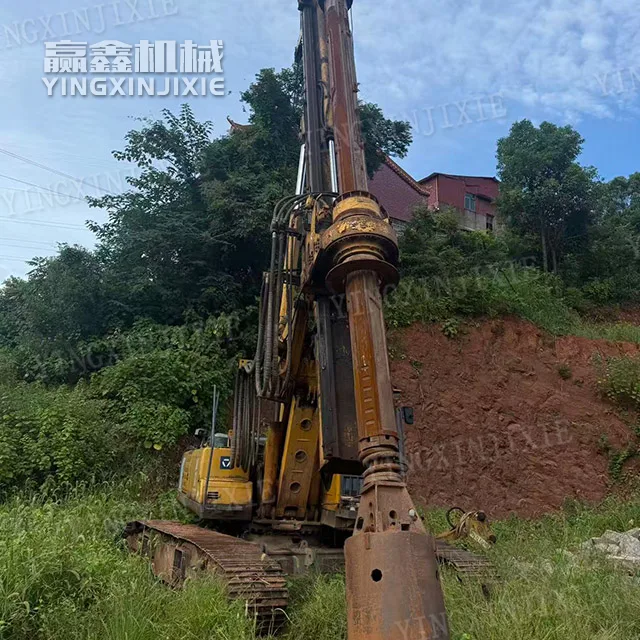

Excellent stability XCMG XR150D III Rotary Drilling Rig

Power adaptation, worry free, high durability

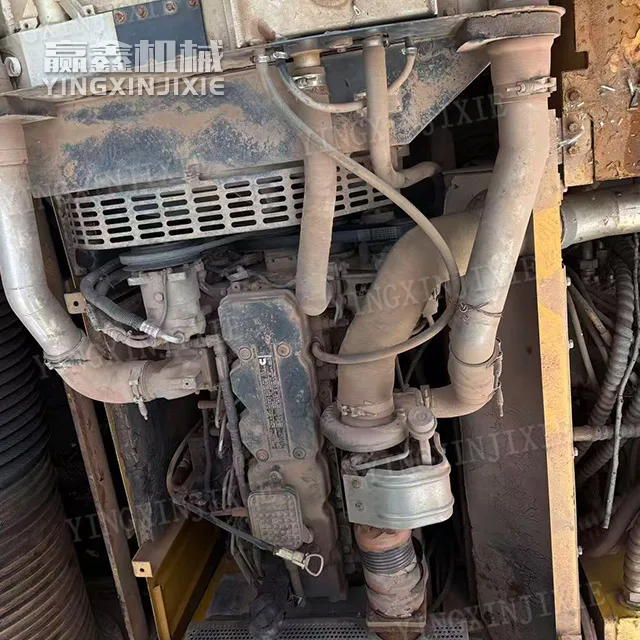

Equipped with Cummins electronically controlled turbocharged engine, with a peak power of 150kW and sufficient power reserve; Suitable for most conventional strata such as clay, sand, and gravel layers, with Euro III emissions, construction can be carried out on both urban and rural sites.

Excellent overall stability

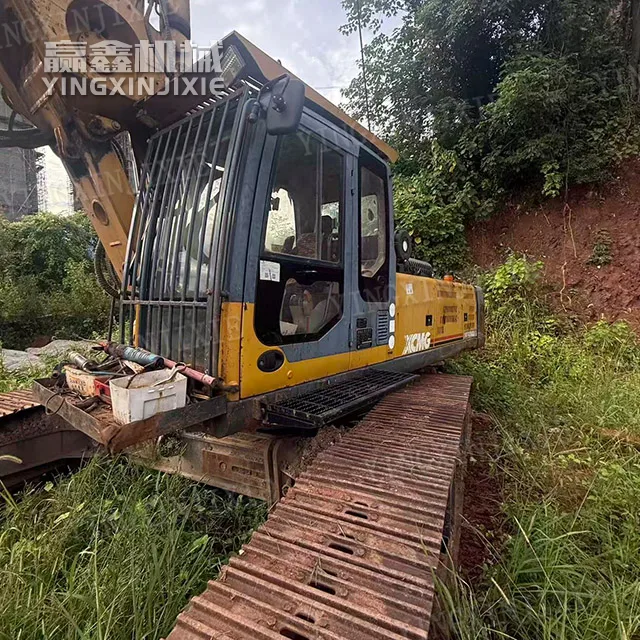

TDP telescopic special track chassis, large diameter slewing support; The track can be narrowed to 2960mm, making it easy to transport in compliance with regulations. The unfolded track gauge is 4200mm, and the punching is anti shake and not easy to tilt. The total weight of the machine is 49 tons with sufficient counterweight.

Hydraulic system is fuel-efficient and efficient

Maximum power+negative flow dual control hydraulic, load adaptive oil supply; The heavy-duty drilling output has a stable torque of 150kN · m, low idle power consumption, and long-term fuel consumption is better than competitors in the same class.

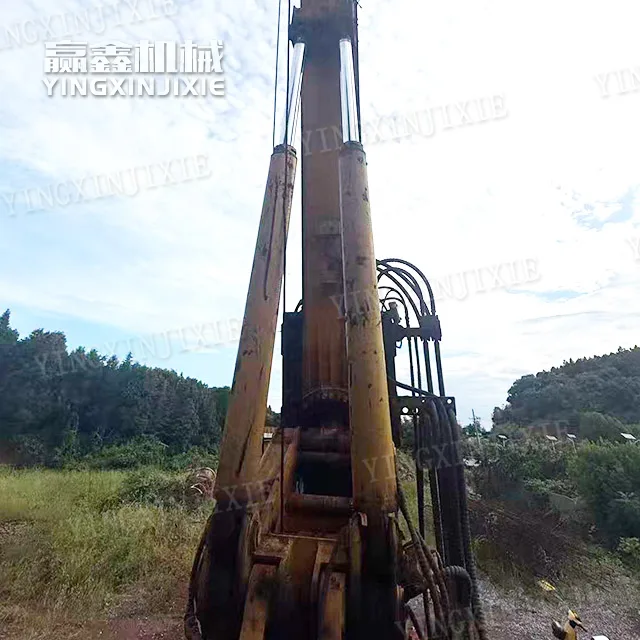

The winch structure extends the service life of the steel wire rope

Single row rope main winch structure to avoid steel wire rope compression and wear; Integrated drilling depth sensor, accurate reading of drilling depth, high qualification rate of pile foundation drilling.

Convenient maintenance, easy to buy accessories, high resale value

Standard centralized lubrication; The power head drive button can be disassembled and replaced, making maintenance simple; XCMG accessories are available nationwide, with a good second-hand circulation market and a large quantity of small and medium-sized pile foundation construction sites.
