Strong Stability XCMG XR150D III Rotary Drilling Rig

Balanced torque and drilling capacity, versatile adaptation for small and medium-sized piles

The maximum output torque is 150kN · m, the maximum applied pressure is 120kN, the lifting force is 160kN, the standard borehole diameter is 1.5m, and the maximum drilling depth is 56m. It is suitable for small and medium-sized pile foundation projects such as building pile foundations, municipal roads, small bridges, and photovoltaic piles; Clay, sandy soil, backfill soil, and a small amount of moderately weathered rock layers can all be stably drilled, and both soft and hard strata are compatible.

Single row rope main winch significantly improves the lifespan of consumables

The mature single row rope structure in the industry reduces the compression and eccentric wear of steel wire ropes, and increases the service life of steel wire ropes by more than 30%; Equipped with a drilling depth detection device, the single-layer rope winding distance measurement is accurate, the drilling depth error is small, and rework losses are reduced.

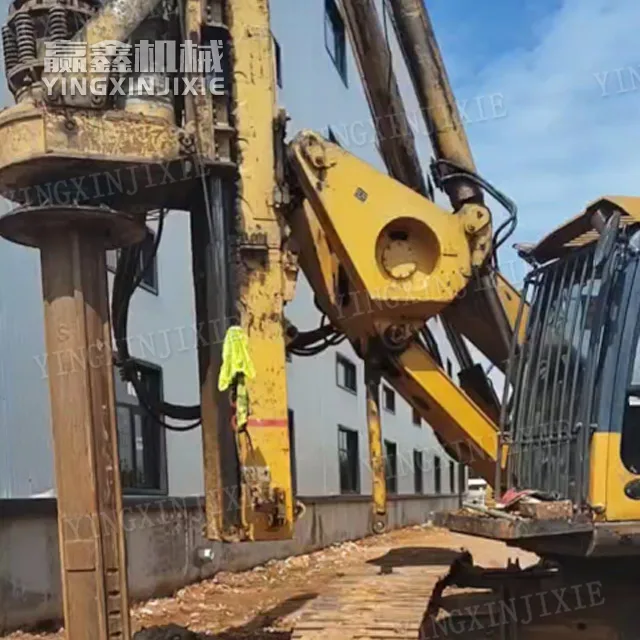

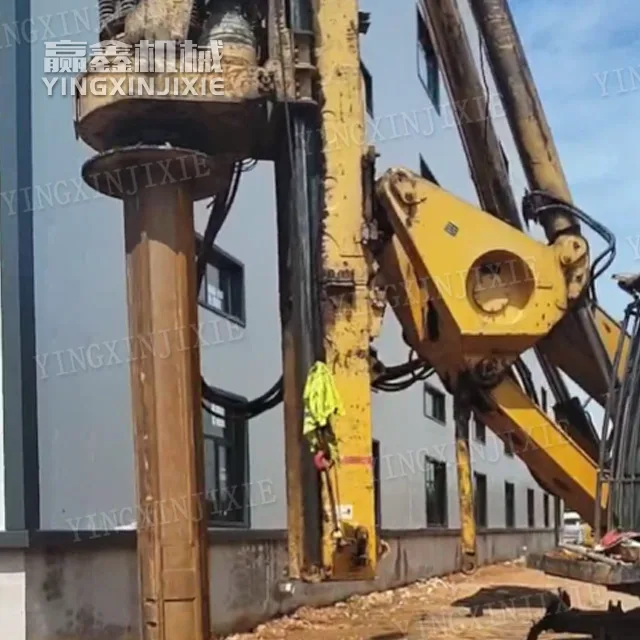

Parallel quadrilateral amplitude changing mechanism, with a wide operating range and high verticality of hole formation

Specialized patented variable amplitude structure for small and medium-sized tonnage, flexible mast adjustment, 360 ° rotation without dead corners, loose soil layers and backfill sites are not easily deviated from the hole, and the verticality compliance rate of the pile body is high, reducing collapse and expansion problems.
