Dynamic stability XCMG XR150D Rotary Drilling Rig

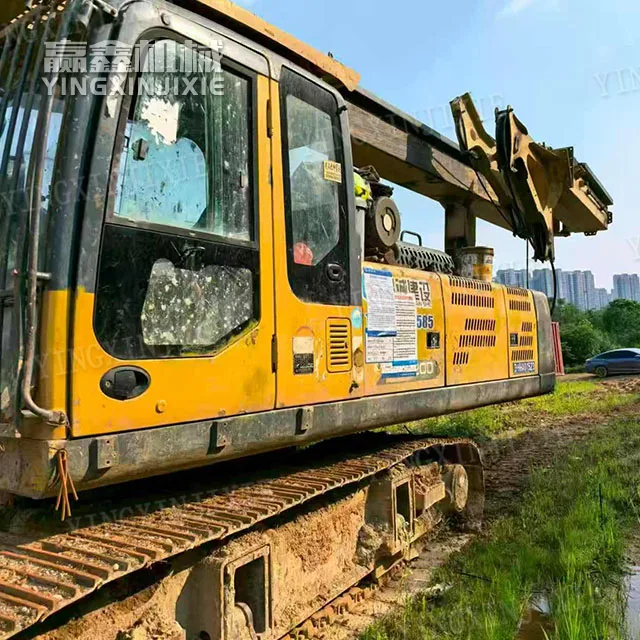

Stable chassis and convenient transfer

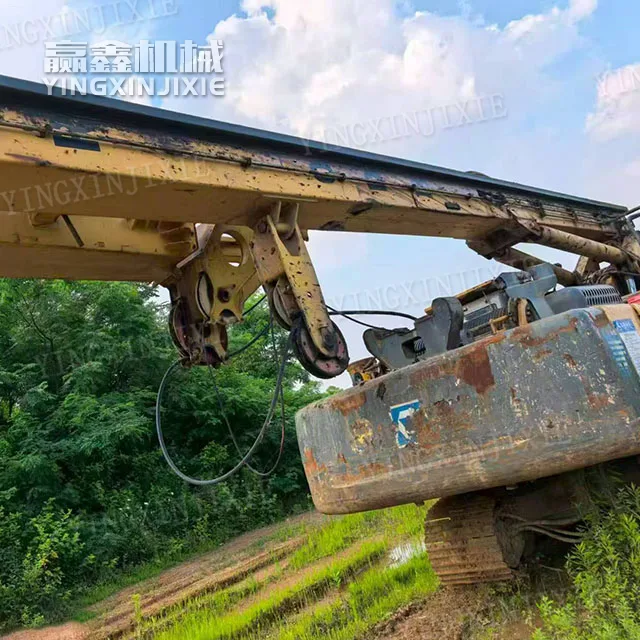

Special rotary digging telescopic crawler chassis+double-box luffing mechanism, narrow road compliance transportation; Back-dipping big triangle drilling mast structure, soft soil, backfill site machine not easy to shake, high hole verticality.

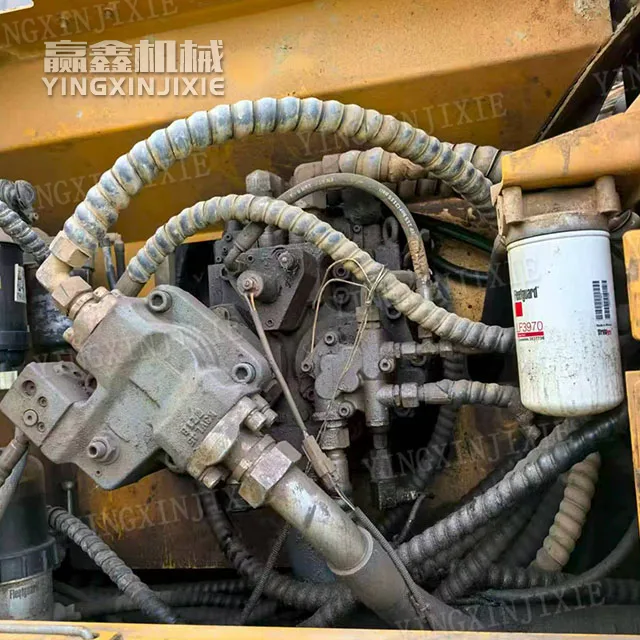

Fuel efficient and durable power assembly

Cummins electronic control engine, exclusive speed regulation rate adjustment, automatic power reduction under no-load/light load; Single-row rope main winch, low wear of steel wire rope and lower maintenance cost.

Intelligent electronic control system

CAN bus PLC intelligent control system: automatic vertical adjustment of drilling mast, real-time depth display and fault self-diagnosis; Standard GPS remote monitoring, which can remotely check the working condition, fuel consumption and fault code.

Strong scalability

Optional casing driving device and rock driving head mode; The auxiliary winch can assist in hoisting small reinforcement cage, eliminating crane coordination; Standard centralized lubrication, saving daily maintenance time.

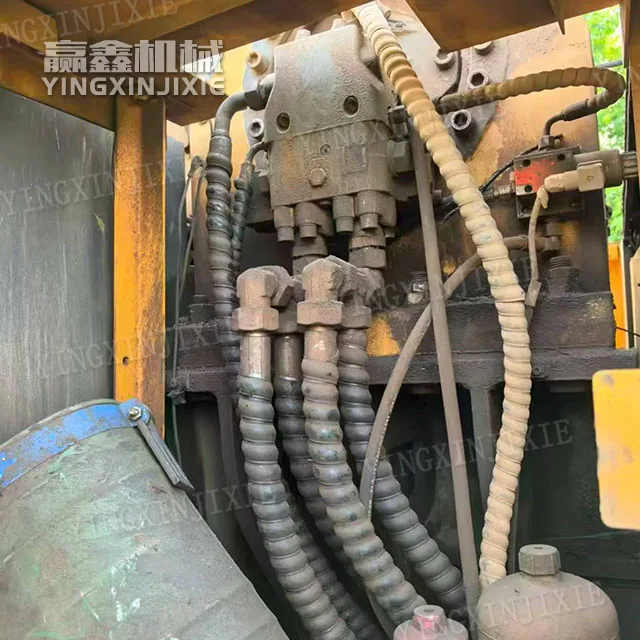

Hydraulic matching and high efficiency

Kawasaki original main pump+flow control, pressure, rotation and winch action compound smooth, loess, silty clay, soft rock construction efficiency outstanding.
