Efficient and Durable Applicable to a Wide Range of Strata Straight Auger & Conical Auger Drilling Tools

Description

Item	Value
Model NO.	Drilling Tools IV
Shell Hit	1500
Spiral THK.	30+30
Teeth No	17
Transport Package	Overall Height: 18,592 mm
Trademark	Bao E26
HS Code	8401301000
Pile Dia	1200
Spiral Pitch	600+600
Spiral Od.	1150
Weight	1900
Specification	overall height: 18,592 mm
Origin	Germany
Production Capacity	10

Inquire Now

Detailed description

Description

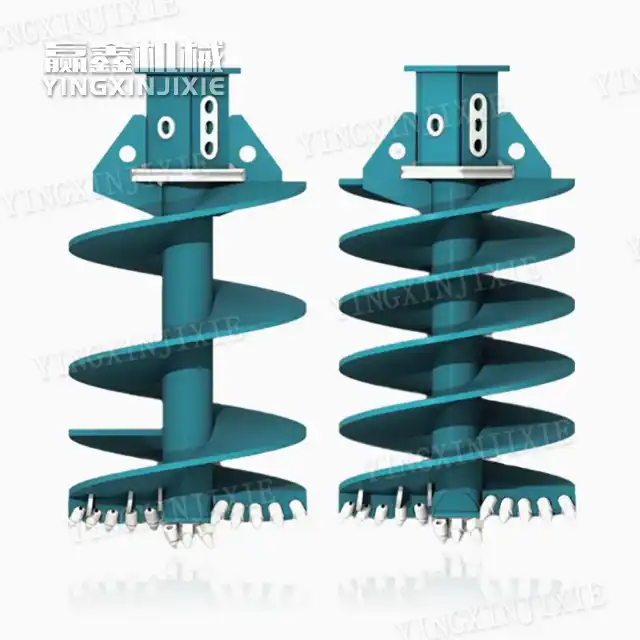

Straight Auger:

Design as straight type, better for carry soil;
Double cutter bearing uniform force, can avoid inclined hole;
Double spiral easy to carry soil, but meet cohesive soil, single spiral is easy to dump spoil;
Applicable layers: clay, high-weathered layer, gravel etc;

Pile Dia.	Shell HIT.	Spiral Pitch	Sprial THK.	Sprial OD.	Teeth No.	weight
φ600	1500	600+400	30+20	500	4	550
φ800	1500	600+400	30+20	750	6	800
φ900	1500	600+500	30+20	850	8	850
φ1000	1500	600+600	30+20	950	8	900
φ1200	1500	600+600	30+20	1150	10	1250
φ1500	1500	600+600	30+30	1450	12	1750
φ1600	1500	600+600	30+30	1550	14	1900
φ1800	1500	600+600	35+30	1750	16	2600
φ2000	1500	600+600	35+30	1950	18	3050

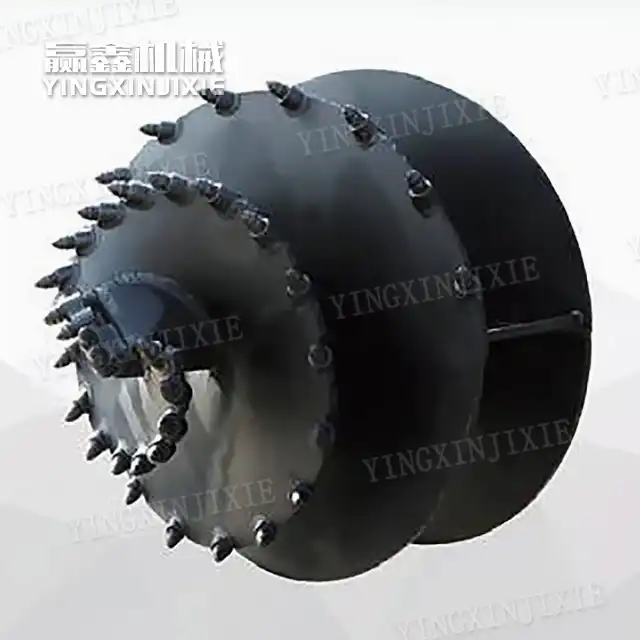

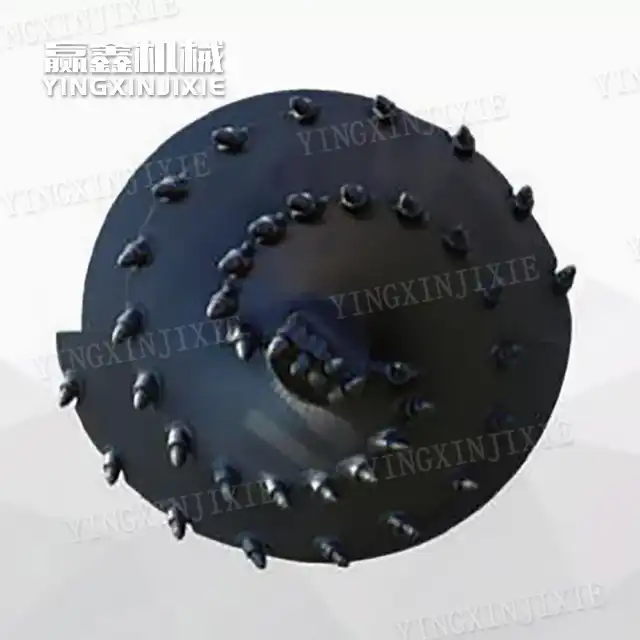

Core Barrel with Double Shell:

Location by pilot, conical structure drilling into the rock;
Double cutter bearing uniform force, can avoid inclined hole;
Double spiral easy to carry soil, but meet cohensive soil, single spiral is easy to dump spoil;
Applicable layers: medium weathered rock, bedrock;
