Heavy Calibre High Efficiency Slagging Improve Efficiency Open-Type Bucket

Description

Item	Value
Model NO.	Drilling Tools V
Shell Hit	1500
Spiral THK.	30+30
Teeth No	17
Transport Package	Overall Height: 18,592 mm
Trademark	Bao E26
HS Code	8401301000
Pile Dia	1200
Spiral Pitch	600+600
Spiral Od.	1150
Weight	1900
Specification	overall height:18,592mm
Origin	Germany
Production Capacity	10

Inquire Now

Detailed description

Description

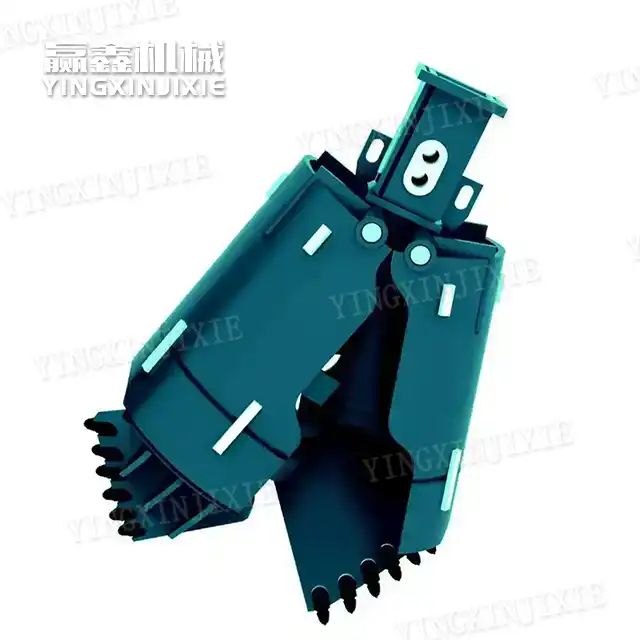

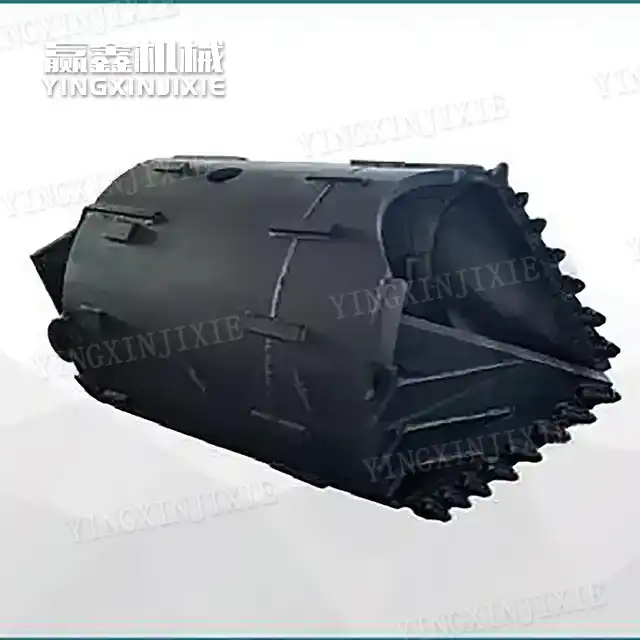

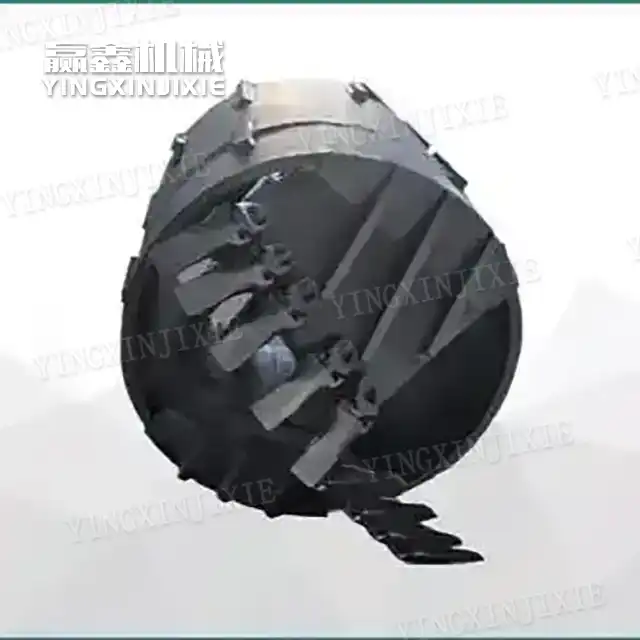

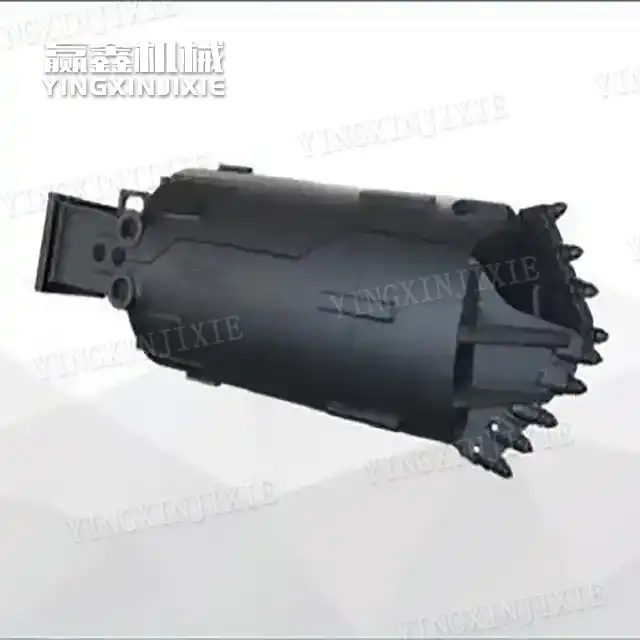

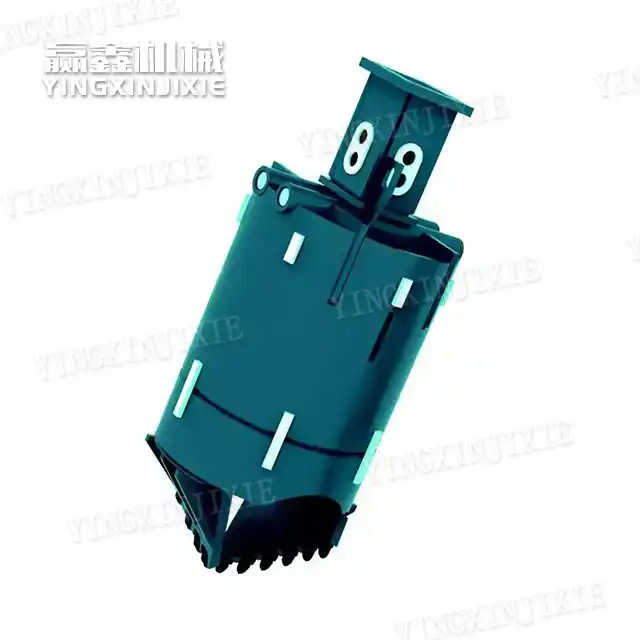

Large inlet of soil, open shell design, easy to dump spoil so increases the drilling efficiency;
Super strength structure for shell and guide plate, increase thelife of bucket;
Guide strips arranged on the surface of bucket can avoid drillingtool sucked by the pressure;
Applicable layers: clay, silt, highly weathered rock;

Pile Dia.	Outer Shell HIT	Shell THK.	Stiffening Ring hit	Stiffening Ring hit	Teeth No.	weight
φ600	1200	25	40	300	7	800
φ800	1200	30	40	300	9	1350
φ900	1200	30	40	300	10	1550
φ1000	1200	30	40	300	12	1900
φ1200	1200	30	40	300	13	2250
