Item
|
Unit
|
Value
|
|---|---|---|
|
Max. Drilling Torque
|
kN·m
|
240
|
|
Max. Uncased Drilling Diameter
|
mm
|
2200
|
|
Max. Cased Drilling Diameter
|
mm
|
1800
|
|
Max. Drilling Depth (Standard)
|
m
|
70
|
|
Overall Operating Weight
|
kg
|
78000
|
|
Operating Dimensions (L×W×H)
|
mm
|
16500×4500×22000
|
|
Transport Dimensions (L×W×H)
|
mm
|
16500×3550×3400
|
|
Mast Tilt Angle
|
°
|
±5 (left/right), ±5 (forward/backward)
|

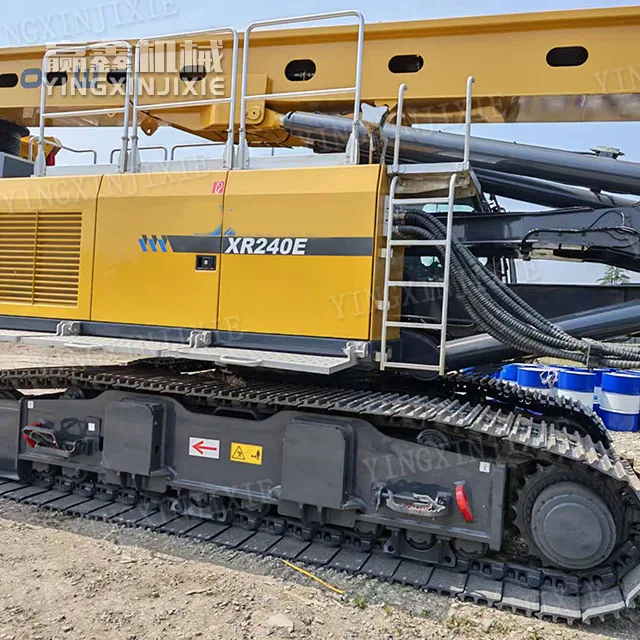

Stable anti-deflection drilling XCMG XR240E Rotary Drilling Rig
Description
Detailed description
Description
Lightweight and easy to transition
84t class, narrow body transportation (3.25m wide), low trailer cost, flexible site relocation.
Fuel efficient and durable

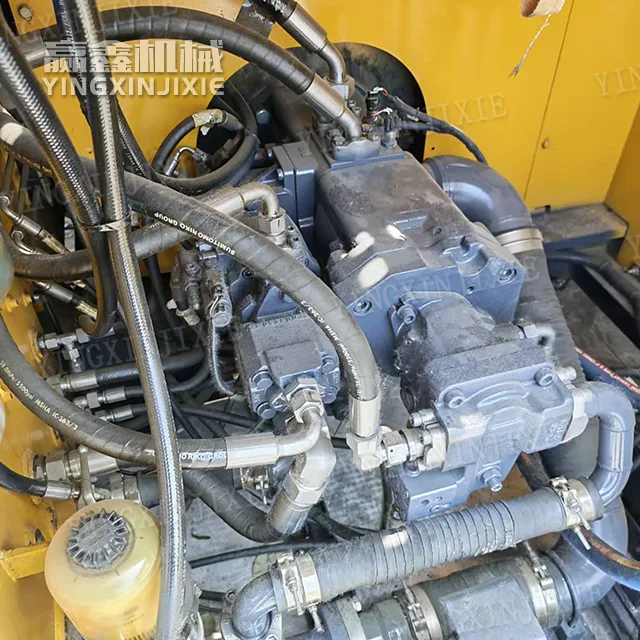

Isuzu engine+negative control hydraulic, saving 10-15% oil compared to 285 under the same operating conditions; Single row rope winding, longer service life of steel wire rope.
Stable anti deviation hole
Double boom amplitude+wide chassis (widened by 4.4m), good verticality control, and less likely to collapse holes in soft soil/sand layers.
Intelligent and easy to use

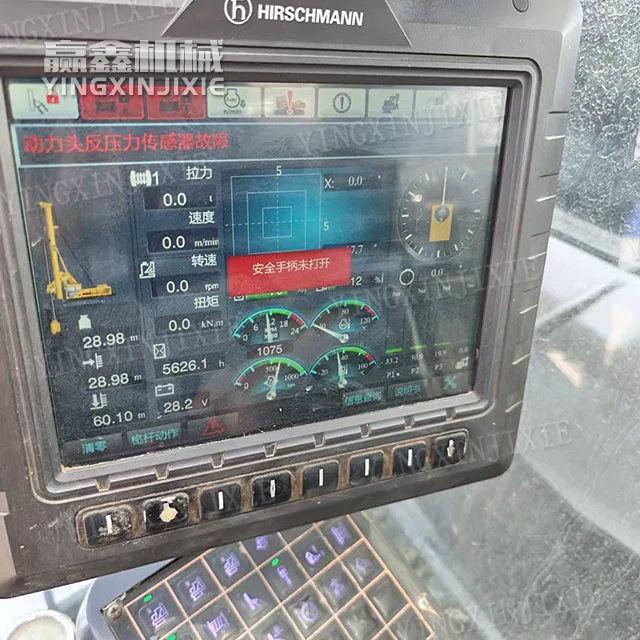

Automatic verticality, adaptive torque, automatic soil throwing, easy for beginners to operate.
Multi method adaptation
Can be equipped with CFA long helix and low clearance kit, suitable for small urban construction sites.
