Item
|
Unit
|
Value
|
|---|---|---|
|
Max. Drilling Torque
|
kN·m
|
240
|
|
Max. Uncased Drilling Diameter
|
mm
|
2200
|
|
Max. Cased Drilling Diameter
|
mm
|
1800
|
|
Max. Drilling Depth (Standard)
|
m
|
70
|
|
Overall Operating Weight
|
kg
|
78000
|
|
Operating Dimensions (L×W×H)
|
mm
|
16500×4500×22000
|
|
Transport Dimensions (L×W×H)
|
mm
|
16500×3550×3400
|
|
Mast Tilt Angle
|
°
|
±5 (left/right), ±5 (forward/backward)
|

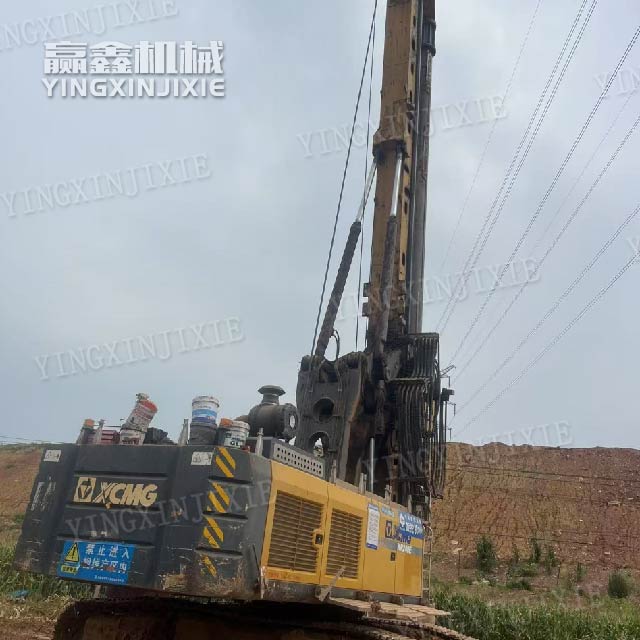

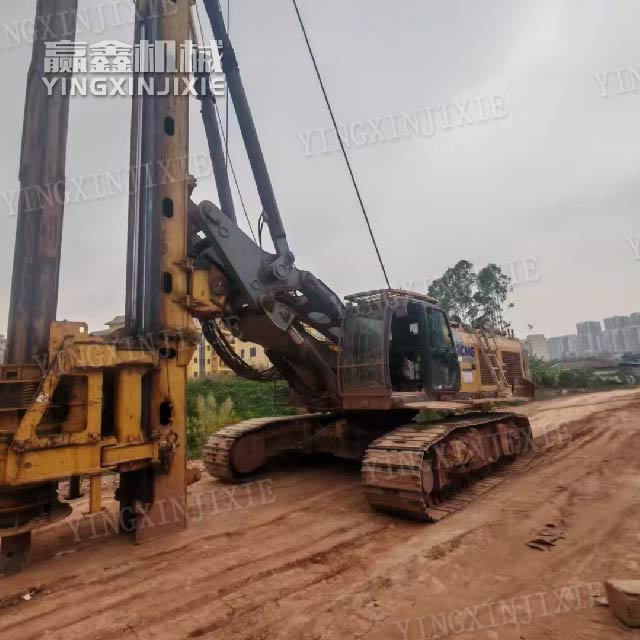

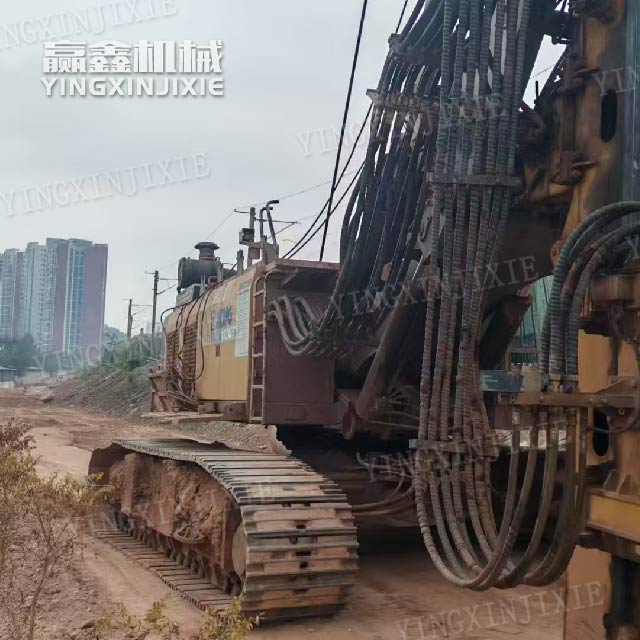

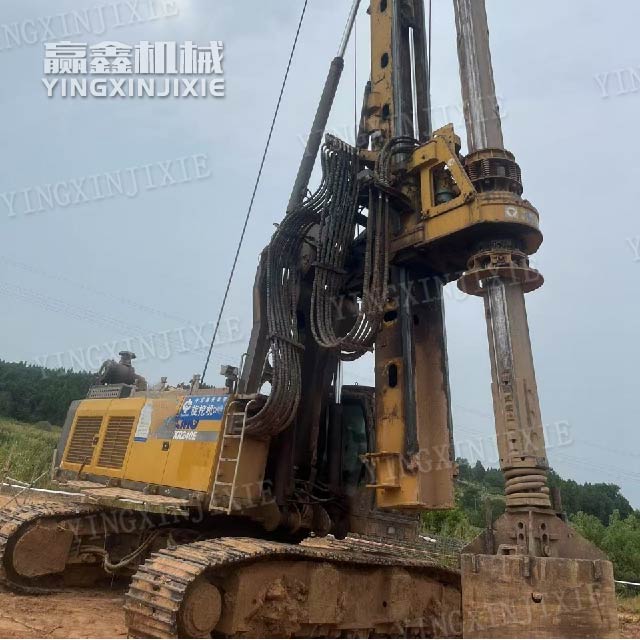

Adaptable to all working conditions XCMG XR240E Rotary Drilling Rig
Description
Detailed description
Description
240kN · m+210kN pressurization: ordinary rock entry stability, efficiency 20% higher than 220
Golden torque matching: easily handle clay, sand, gravel, strongly weathered/moderately weathered rocks, it can handle tasks that cannot be done with 220, and it is cost-effective for tasks that are too expensive with 280.
70m deep hole+2.2m large diameter: covering mainstream housing construction, municipal engineering, and bridge piles; 5m long stroke pressure, long casing without rod jamming or hole collapse, stable hole quality.
Multi speed power head: fast drilling in soft soil, stable drilling in hard rock, without holding up the machine or shaking the rod, with a daily footage of up to 200m.
Isuzu+single row rope: fuel-efficient, durable, and much more fuel-efficient when used for a long time
270kW Isuzu electronic control: With sufficient power and fuel consumption more than 15% lower than its peers, it is easy to start at low temperatures and has strong adaptability to high altitudes. It has multiple after-sales outlets and cheap accessories.
The main and auxiliary winches have a single rope arrangement: no compression or twisting, doubling the lifespan of the steel wire rope and reducing downtime due to rope replacement, saving 20000 to 30000 yuan in consumables annually.
Negative flow hydraulic+Kawasaki valve: fast response, coherent action, compound without jamming, easy operation, and easy for beginners to pick up.
Intelligent and easy to operate, stable and worry free: less faults, less rework
XCMG Intelligent Electronic Control: Mast automatic vertical adjustment, depth self recording, automatic rotation/soil throwing, anti jamming pole/anti misoperation/overload protection, 3ms response, accurate data.
Double arm large parallelogram: support range+16%, strong rigidity, stable drilling verticality, good vibration resistance, no shaking of hard rocks, and no drifting of deep holes.
Independent temperature control cooling: High temperature automatic fan speed adjustment, no high temperature in summer, easy to start in winter, stable construction throughout the year.
