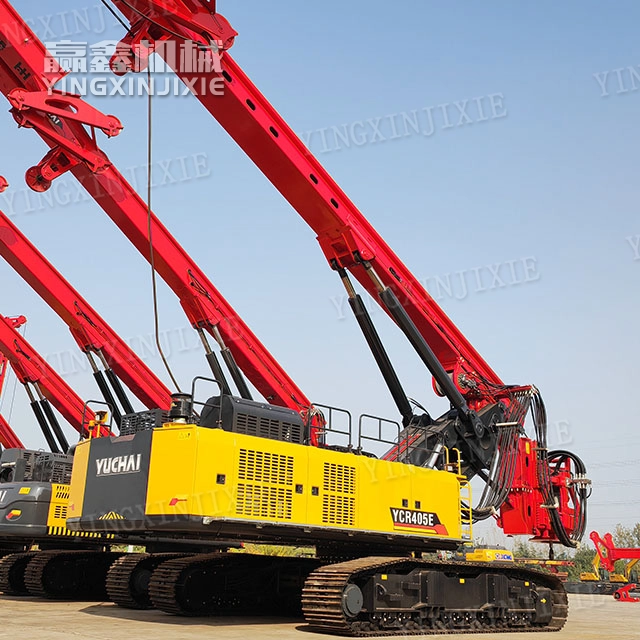

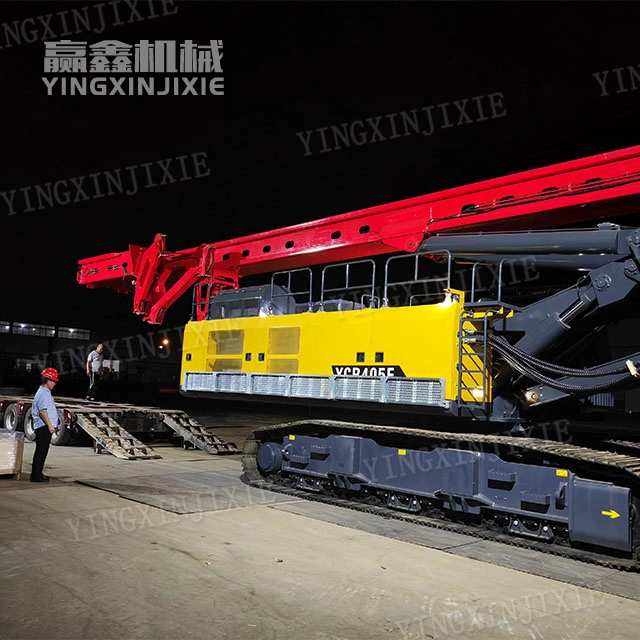

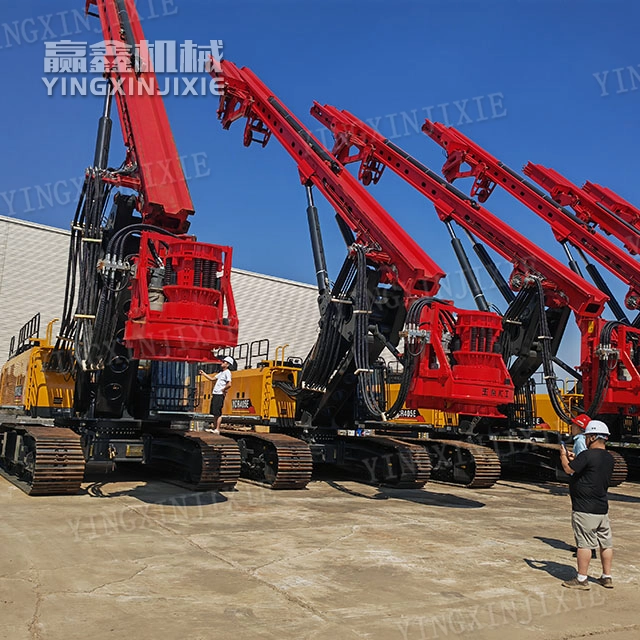

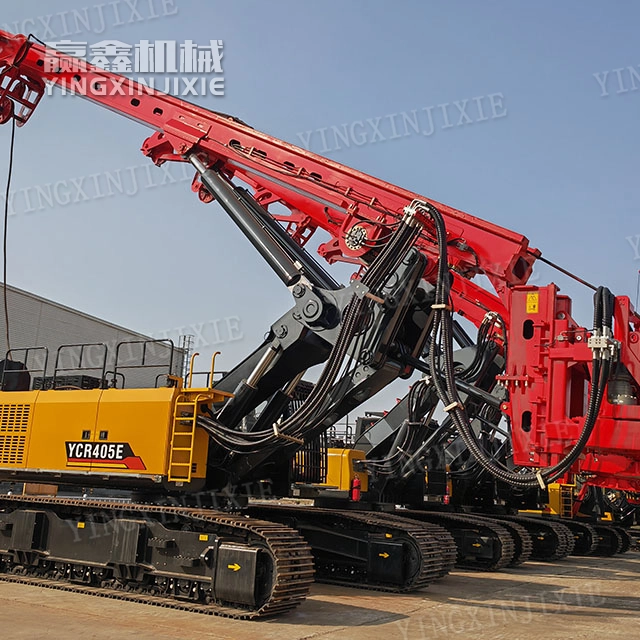

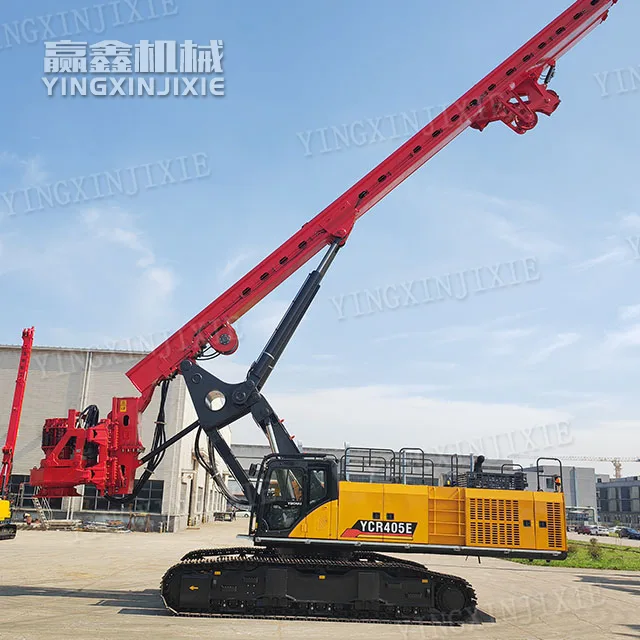

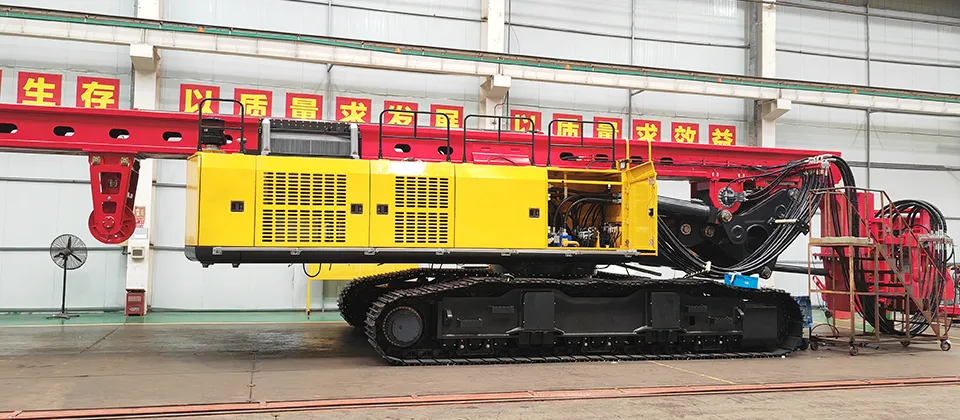

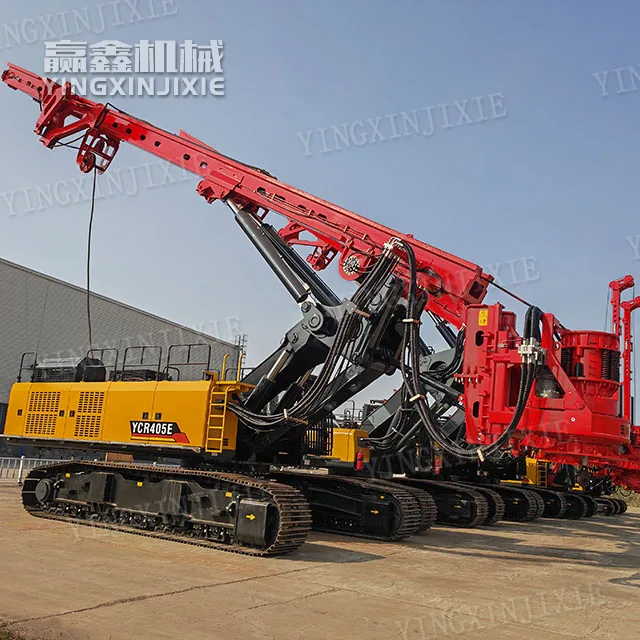

Large-scale rotary YUCHAI YCR405E Rotary Drilling Rig

Description

Parameter	Value
Model	YUCHAI YCR405E
Engine Model	Yuchai YC6K13 (optional: Euro III / Euro V emission standard, China National Stage IV); optional Cummins X15 for overseas markets
Engine Rated Power/Rotation Speed	375 kW @ 2100 rpm (optional: 405 kW @ 2100 rpm high-power version)
Power Head Max. Output Torque	405 kN·m
Power Head Rotation Speed	5 ~ 22 rpm
Max. Drilling Diameter	2500 mm (standard); 3000 mm (optional, friction rod)
Max. Drilling Depth	100 m (friction rod); 70 m (mechanical locking rod)
Max. Pull-down Piston Thrust	320 kN
Max. Pulling Force	380 kN
Main Winch Max. Pulling Force	380 kN
Main Winch Max. Pulling Speed	50 m/min
Auxiliary Winch Max. Pulling Force	120 kN
Operating Weight (Working State)	120 t (standard); optional 100 t / 85 t (modified for transportation)
Transport State Dimensions (L×W×H)	16800 × 3500 × 3600 mm (optional: 18200 × 3500 × 3600 mm)
Main Pump Max. Working Pressure	35 MPa
Track Plate Width	900 mm
Track Gauge	4800 mm

Inquire Now

Detailed description

Description

Torque ceiling, dry hard rock directly

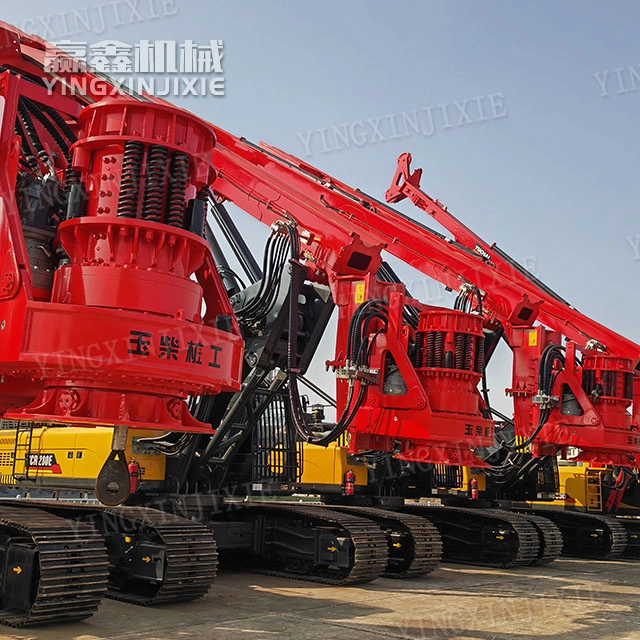

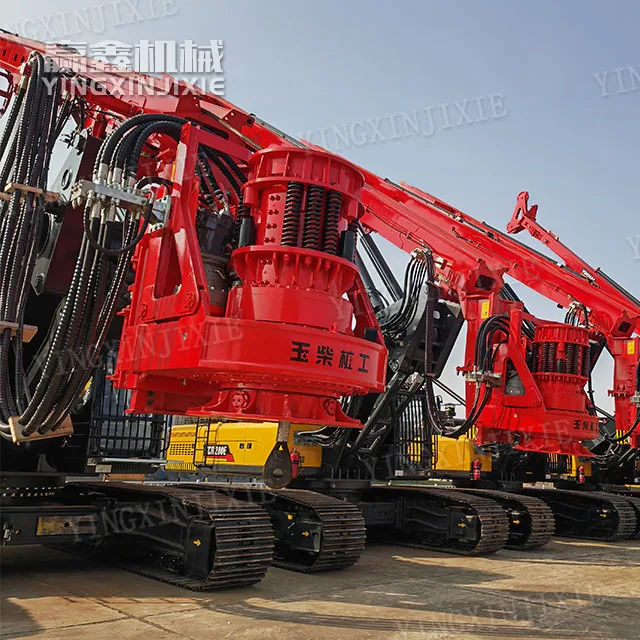

Rated at 405kN · m (over 40% higher than 280), equipped with dual motor super large power heads, capable of directly and violently crushing granite, moderately/strongly weathered, super large pebbles, and ultra deep hard soil into the rock, effectively crushing small and medium-sized machines.

King of Ultra Deep Holes: 103 meters deep, 3-meter large hole

Friction bar 103m, machine lock bar 66m; maximum aperture 2.6m (standard)/3.0m (optional), specially designed for super high-rise buildings, cross sea bridges, high-speed rail super large bridges, wind power foundations, and port terminals.

120 ton heavy machine, stable as Mount Tai, perfect hole forming

The whole machine weighs 120 tons, with a super heavy special chassis, a super large box type mast, and a giant slewing support. The verticality, aperture, and wall stability of the 80-100 meter deep hole are fully maintained, and the supervisor is exempt from inspection.

Top power+top hydraulic, durable and not prone to collapse

Engine: Cummins QSX15 373kW (507 horsepower), National IV, stable in high altitude/low temperature/heavy load, with sufficient power reserve and long service life.
Hydraulic: Rexroth complete set (main pump+valve+motor), 33MPa high pressure, high flow rate, load sensitive, fast composite action, fuel-efficient, and extremely low failure rate.
