High‑power power reserve XCMG XR360E Rotary Drilling Rig

Power and rock advantages of XCMG Group

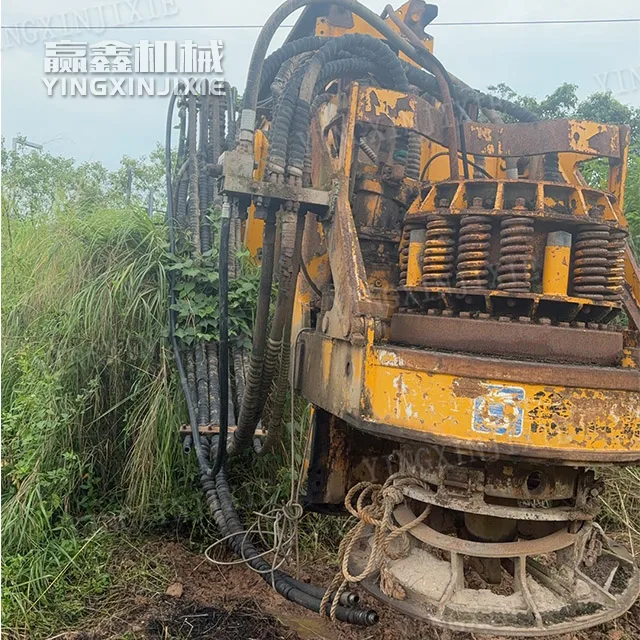

The maximum torque is 360kN · m, driven by a three motor power head. It can efficiently drill through soil layers, pebbles, and moderately weathered hard rocks, and can accommodate both soft and hard formations.

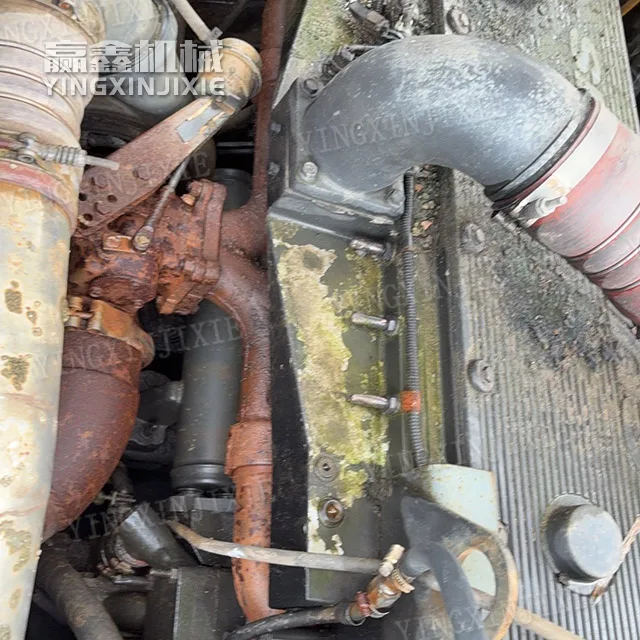

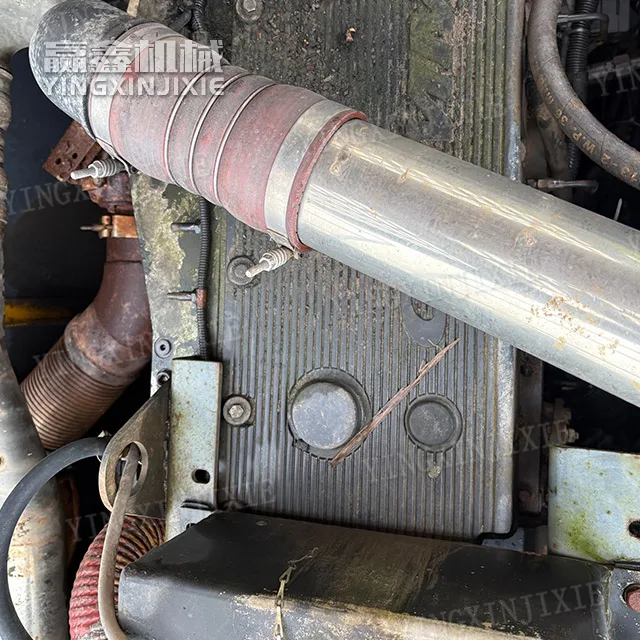

High end Volvo/Cummins high-power National IV engine, with sufficient power reserve, supporting high-altitude and heavy-duty long-term operations; Multi speed power matching, excellent fuel consumption control.

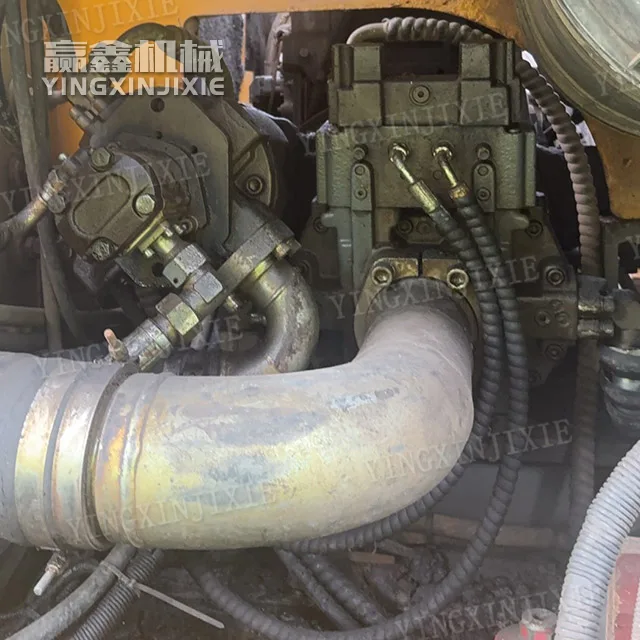

The Rexroth load sensitive LUDV high flow hydraulic system has sufficient flow, fast response, and smooth composite action without pressure build-up.

Construction efficiency advantage

Dual mode switching of power head: soil high-speed mode and rock entry high torque mode, without frequent modification.
The main winch has a fast lifting speed and a single row rope structure, which greatly extends the service life of the steel wire rope and reduces downtime during rope replacement.
Large aperture deep pile capacity: The maximum pile diameter is 2.5-2.6m, and the maximum drilling depth can reach 103m; suitable for large deep pile projects in bridges, subways, and high-rise buildings.

Stable and reliable advantages of XCMG

XCMG’s self-made telescopic track special chassis has a wide width, low center of gravity, excellent anti overturning performance, and more stable construction in deep piles and inclined rock layers.
Double arm large parallelogram amplitude changing mechanism, high-strength box structure of drilling mast, strong torsional rigidity, and high verticality of drilling holes.
The structural components have a long design life and a low failure rate under heavy load conditions; Standard centralized lubrication, saving time and effort in maintenance.
