Item
|
Value
|
Unit
|
|
Model
|
SR155
|
-
|
|
Max. Output Torque
|
155
|
kN·m
|
|
Max. Drilling Diameter
|
1500
|
mm
|
|
Max. Drilling Depth (Friction Kelly Bar)
|
55
|
m
|
|
Max. Drilling Depth (Interlocking Kelly Bar)
|
44
|
m
|
|
Rotary Head Speed
|
7–38
|
rpm
|
|
Max. Crowd Force
|
155
|
kN
|
|
Max. Pull-out Force
|
160
|
kN
|
|
Operating Weight
|
48000
|
kg
|
|
Engine Rated Power
|
147 @ 2100
|
kW/rpm
|
|
Main Winch Lifting Capacity
|
160
|
kN
|

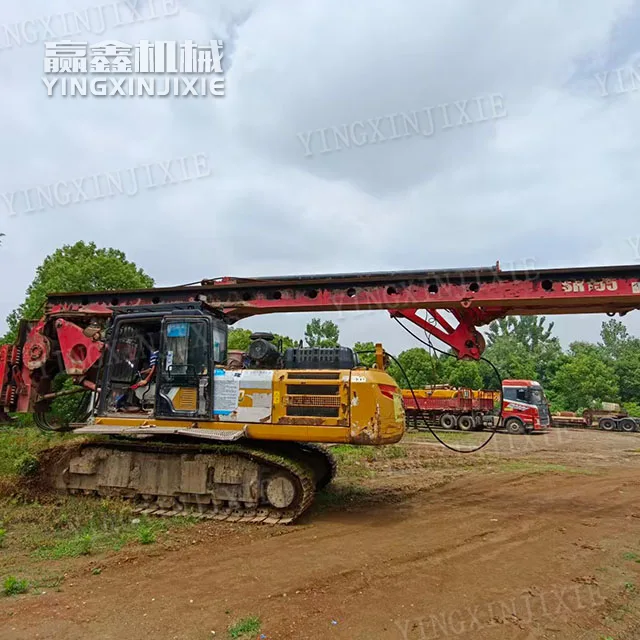

High adaptability SANY SR155-C10 Rotary Drilling Rig
Description
Detailed description
Description
efficient and flexible
The fifth generation powertrain features multi speed control and adaptive capabilities, with strong adaptability to soft and hard terrain.
Compact body, tracked chassis, easy transition, suitable for narrow construction sites.
Economic energy conservation

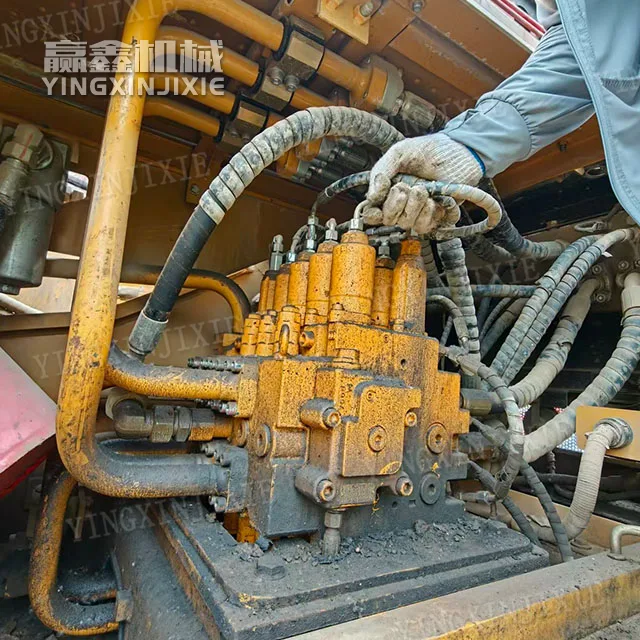

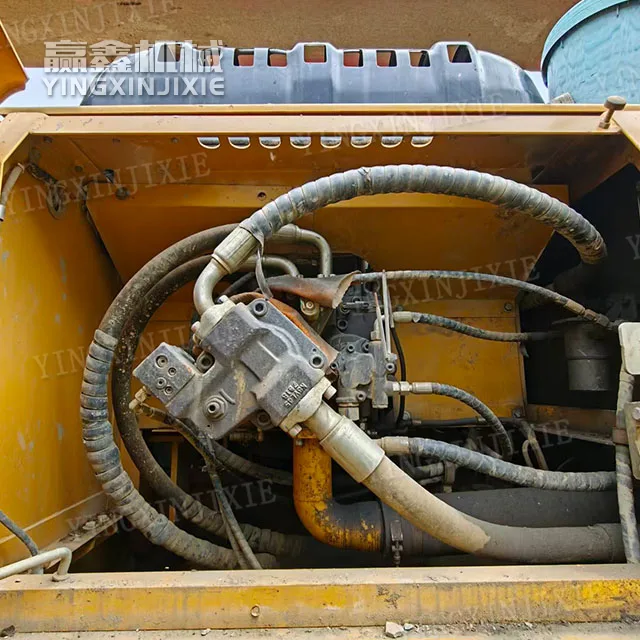

Mitsubishi engine+intelligent hydraulic system, low fuel consumption and high reliability.
Main winch quick lift+high flow pump valve, high perforation efficiency.
Intelligent Security

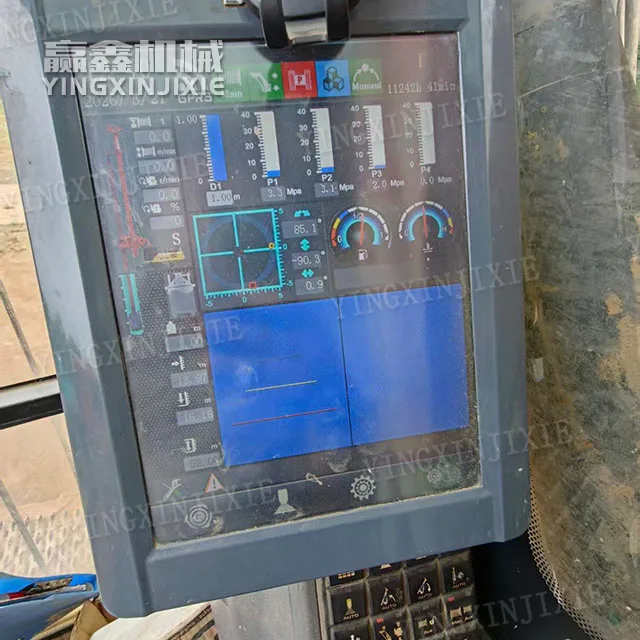

SAY-ADMS intelligent system: fault self diagnosis, construction data recording, remote monitoring.
360 ° panoramic imaging, sunroof view, centralized pressure measurement points, easy maintenance.
