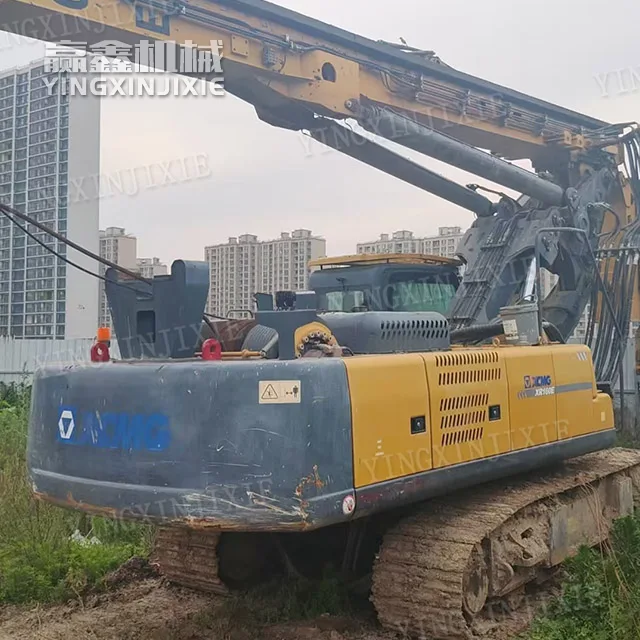

Plataforma de perforación rotativa XCMG XR160 con adaptabilidad integral

Potencia y rendimiento de perforación

Standard 160kN · m power head torque, speed 5-35r/min, optional high-speed soil throwing, high drilling efficiency in soil layers and soft rocks
Cummins 150kW electronic control engine, with sufficient power reserve, good adaptability to high altitude, and easy maintenance and popularization of accessories

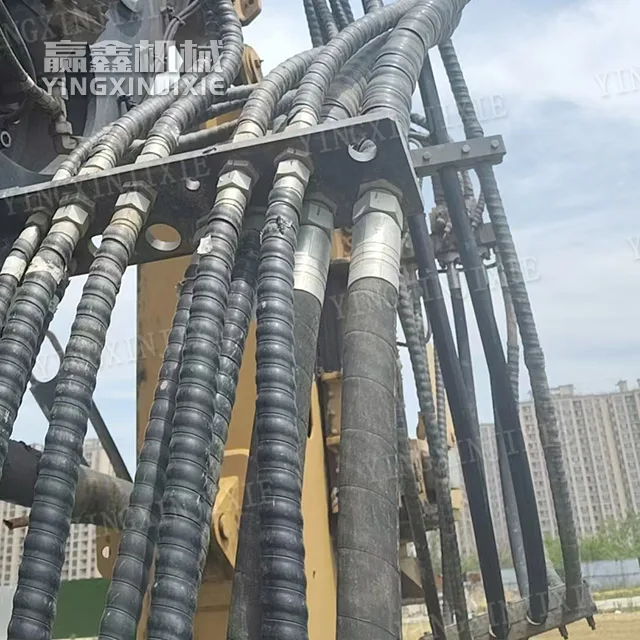

Negative flow Kawasaki hydraulic system, fast action response, smooth compound action, excellent fuel consumption control

Overall stability of the machine

Double arm parallelogram variable amplitude mechanism, with a support range expanded by 24%, resulting in minimal pile driving shaking and good verticality
Widening the retractable track chassis and large-diameter slewing bearings, the total weight of the machine is 49 tons, and the stability is outstanding in small tonnages

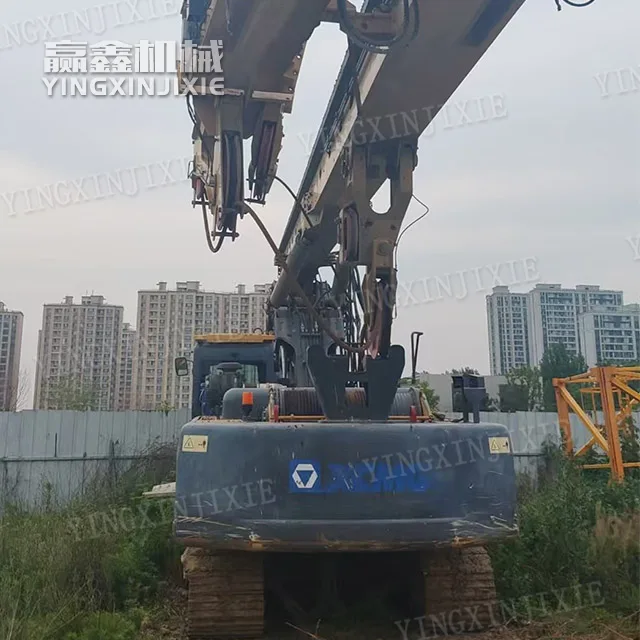

High strength segmented thickened drilling mast, strong bending rigidity, and less likely to shake or deviate during deep hole construction

Multi functional expansion

One machine with multiple functions, capable of quickly switching between hydraulic cylinder pressurization, winch pressurization, long spiral CFA, and dual power heads; Can be equipped with hydraulic hammers, covering various construction methods such as cast-in-place piles and prefabricated piles. It has strong versatility on construction sites and is suitable for rental users with diverse sources of labor
