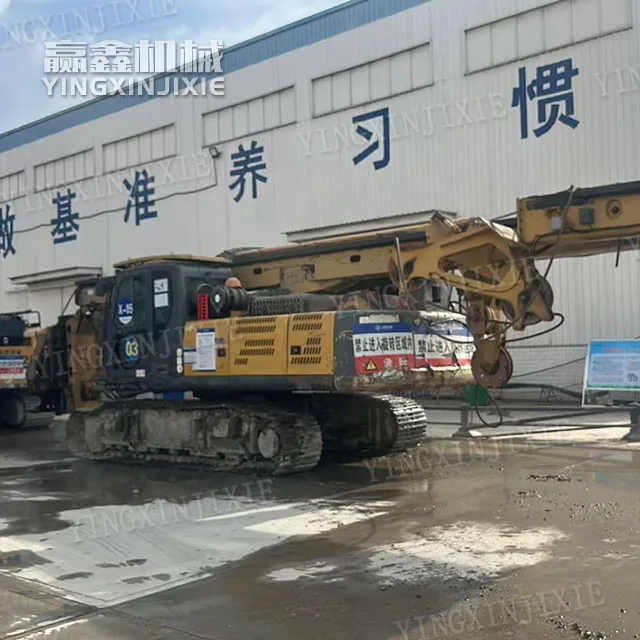

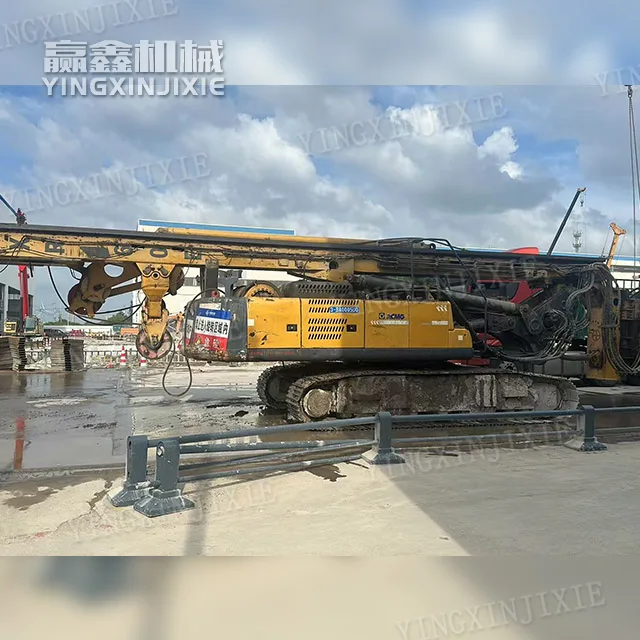

Reliable power XCMG XR160 Rotary Drill Rig

Equipped with Cummins electronically controlled turbocharged engine, with sufficient power reserve and optimized fuel consumption tuning, it has better fuel economy compared to other models in the same class; Full coverage of service outlets nationwide, convenient maintenance and parts supply, worry free after-sales service.

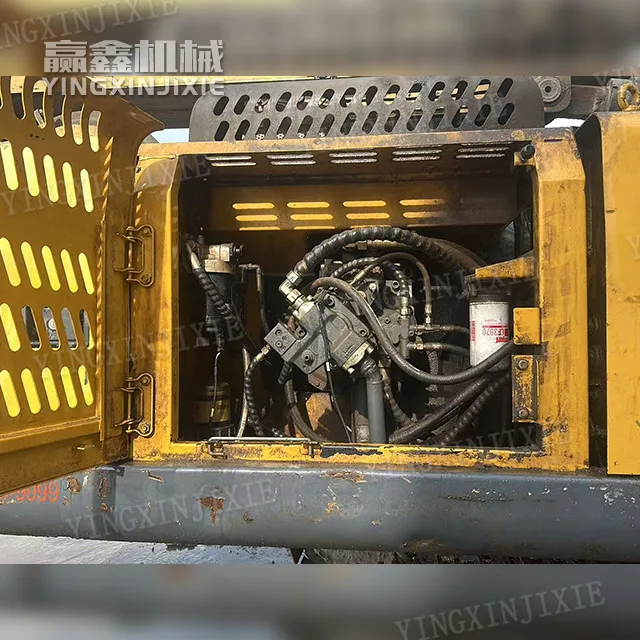

Equipped with Kawasaki imported main hydraulic components and negative flow hydraulic control system as standard, the action is smooth, the response is sensitive, there is no lag in start and stop, and the adaptability to drilling in soft and hard formations is strong, with a lower failure rate.

Construction efficiency and drilling performance

Rated output torque of 160kN · m, speed range of 5-35r/min, fast drilling speed in soil layers, soft rocks, and weathered rocks; The maximum drilling diameter is 1.5m, and the maximum drilling depth is 56 meters, which is perfectly suitable for the construction of rural self built houses, small high-rise buildings, road guardrail piles, and small bridge pier pile foundations.
The pressurization mode can be quickly switched: the oil cylinder pressurization and the winch pressurization can be freely switched, and long screws, dual power heads, and down the hole hammers can also be installed. One machine can be used for multiple purposes, including dry drilling, wet drilling, and CFG pile construction, with a wider range of project orders.

Stable structure and strong homework stability

The double arm large parallelogram variable amplitude structure expands the support range by 24%, making it less prone to shaking during operations on sloping or soft ground. The verticality control of the pile foundation is more precise.
Special TDP rotary excavator track chassis+large diameter slewing support, the track can be extended and retracted; The overall weight distribution of the machine is reasonable, with smooth rotation and soil throwing, and is not easy to tip over or overturn.
The drilling mast and rotary platform are made of thickened I-beam structural components, which are resistant to torsion, bending, and durability. They are not easily deformed or cracked during long-term high-frequency leasing operations.
