| Maximum output torque | 294 kN·m |
| Overall machine weight | 102 t |
| Maximum pile diameter | 2500 mm |
| Maximum pile depth | 87 m |
| Engine model | CAT C 9.3 B |
| Rated power | 310 kW |
| Speed range | 0–32 r/min |
| Maximum pressing force | 350 kN |
| lifting force | 300 kN |
| Extraction Force |
330 KN |

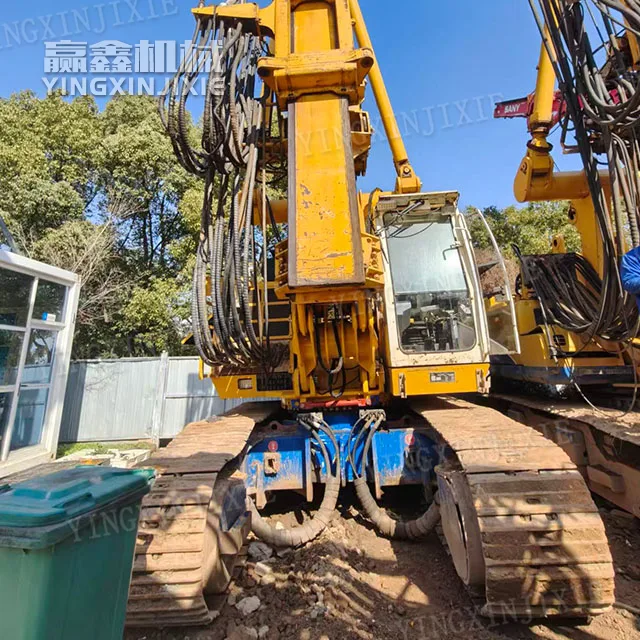

All-round and highly efficient BAUER BG26 Rotary Drilling Rig
Description
Detailed description
Description
German quality, ultimate reliability
The original core components of the whole machine are forged/high-strength welded structures, with extremely strong durability and fatigue resistance.

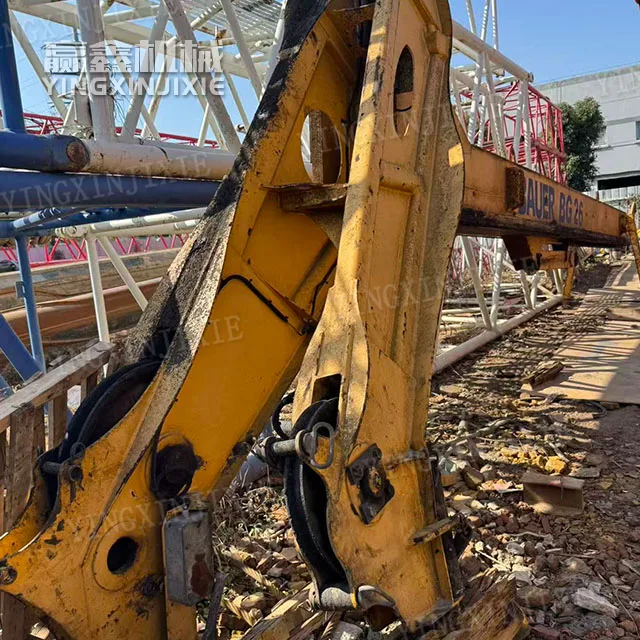

The large triangular support mast and low center of gravity BT 70 chassis are top-notch in terms of torsion resistance, overturning resistance, and verticality control.
The key components (hydraulic, rotary, and winch) have a long service life and a much lower failure rate than domestically produced components of the same tonnage.
Versatile and efficient, powerful rock penetration
264 kN · m high torque+strong pressure, versatile and efficient for clay, sand layers, pebbles, and strongly/moderately weathered rocks.
The main winch operates at a high speed of 80 m/min, providing extremely fast lifting, soil throwing, and drilling, resulting in a pure drilling efficiency of 15% to 25%.
Compatible with the full range of Bao’e drilling tools (rock socketed cylinder drill, short spiral drill, roller cone, expanded bottom), one machine covers the entire construction method.
Intelligent electronic control, energy-saving and fuel-efficient
Standard B-Tronic intelligent system: automatic pressurization, automatic soil unloading, one click return, fault diagnosis.
Load sensitive hydraulic+Carter electronic control engine, with a comprehensive fuel consumption 15% to 20% lower than its peers.

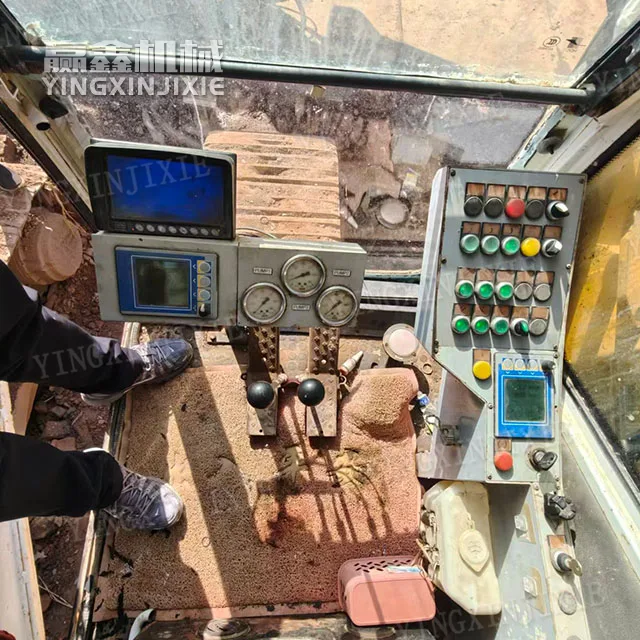

7-inch color screen, real-time parameter monitoring, remote service, and construction data recording.
Flexible transition and convenient maintenance
One click folding of mast, quick dismantling of anchor frame, expansion and contraction of track, fast transition, and compliant transportation (≤ 4.5m).
86.5 tons of moderate weight, more flexible than BG 30 for small urban construction sites and multi project transitions.
Ground level maintenance platform, modular layout, fast replacement of filter elements/oils/vulnerable parts, no need for high-altitude operations.
