Parameter
|
Value
|
|
Model
|
YUCHAI YCR40
|
|
Max. Drilling Diameter
|
800–1500 mm
|
|
Max. Drilling Depth
|
25 m
|
|
Engine Model
|
YUCHAI YC6J220-T303 (in-line, water-cooled, four-stroke)
|
|
Engine Rated Power
|
66 kW @ 2200 rpm
|
|
Operating Weight
|
12000 kg (12 tons)
|
|
Hydraulic System Pressure
|
31.5 MPa
|
|
Overall Dimensions (L×W×H)
|
8200 × 2500 × 3800 mm
|

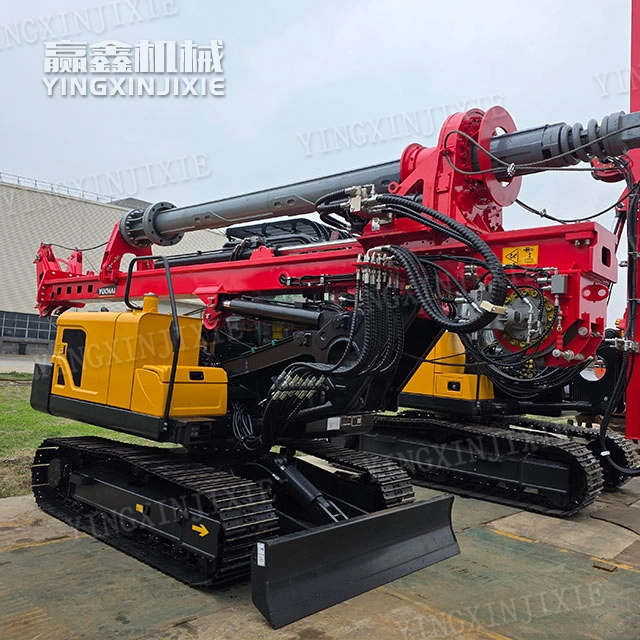

Strong Power YUCHAI YCR40 Rotary Drilling Rig
Description
Detailed description
Description
Stronger power and higher efficiency
40 kN · m torque, much larger than YCR25, can drive harder soil and slightly weathered rock, making it less likely to get stuck.

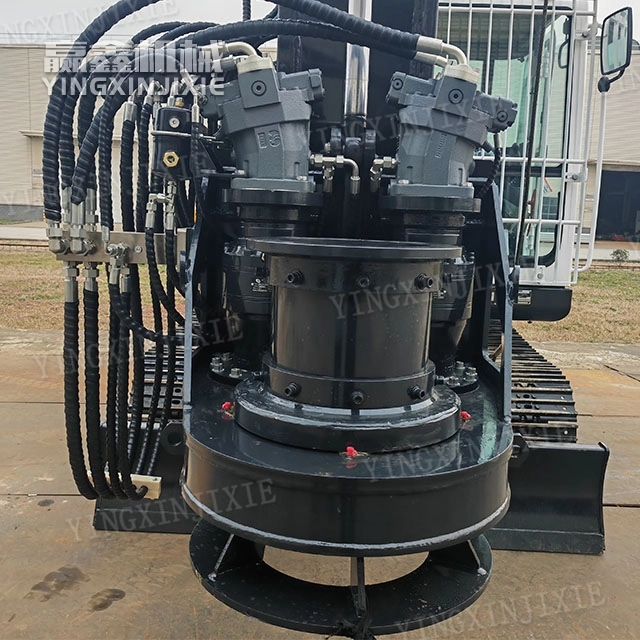

Dual motor power head+high flow main pump, faster drilling and lifting, suitable for bulk construction of building piles and photovoltaic piles.
Compact size and flexible transition (small venue artifact)
The working height is about 9 meters and the transportation height is about 3.0 meters. It can be accessed from small alleys, narrow courtyards, and rural roads.

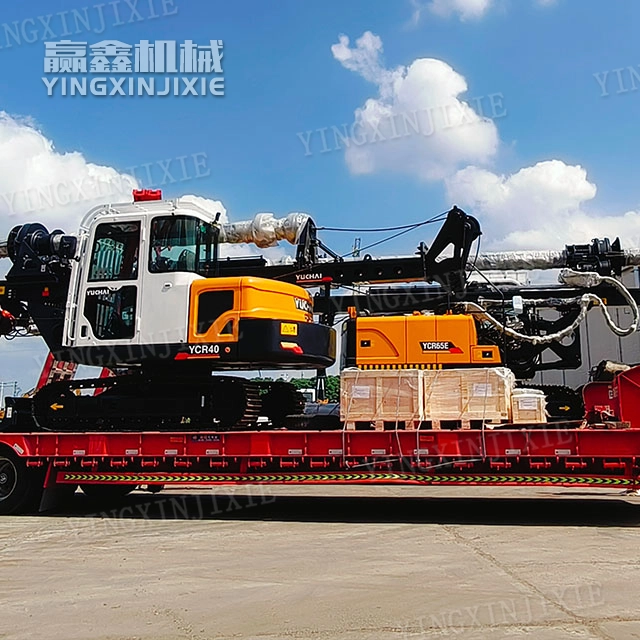

The whole machine weighs about 14 tons and can be transported as a whole with a pole. It can be pulled by a regular trailer without dismantling the mast, saving money and time when transferring.
Solid configuration, durable and worry free

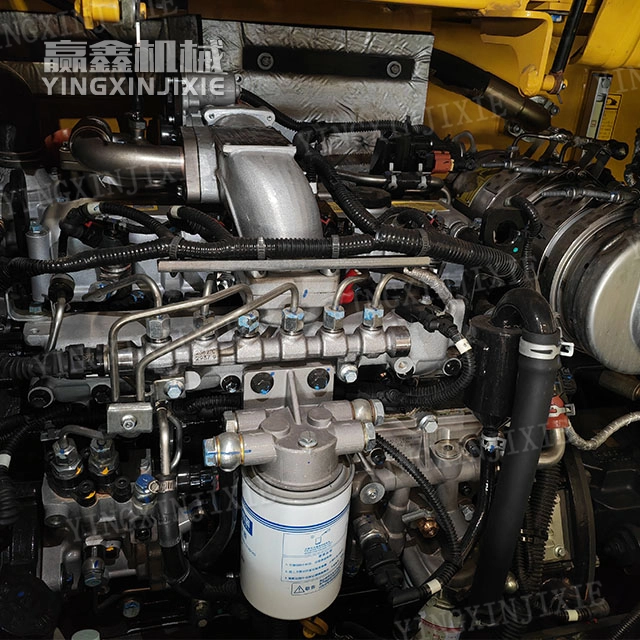

Engine: Imported Yangma (or National IV Yuchai), fuel-efficient, durable, and emission compliant.

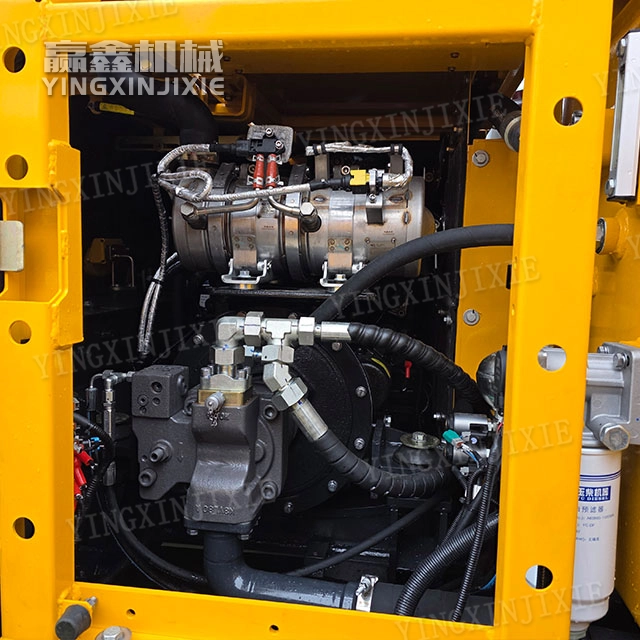

Hydraulic: Toshiba/Kawasaki system, stable operation, low failure rate.
Structure: Triangular box type variable amplitude+reinforced mast, low and stable center of gravity, good hole verticality.
Intelligent and easy to learn
Touchscreen instrument panel, automatic display of hole depth/verticality, beginners can get started in a few days.
360 ° imaging and front and rear cameras make construction safer in narrow spaces.
Optional remote monitoring, fault diagnosis, and fast after-sales response.
