Эффективное проникновение в горные породы. Буровая установка роторного типа SANY SR205-C10.

Efficient drilling, soil/rock layers are interconnected

205kN · m torque+165kN compression, suitable for clay, sand layers, and strongly weathered rocks, with strong rock penetration ability.
The speed of the power head can be adjusted from 5-30rpm, with fast soil injection, rotation, and unloading, and high pore forming efficiency.
Long guide+double buffering, high verticality of borehole formation, stable quality of pile body.

Flexible and adaptable, with low transition costs

The transportation height is only 3.56m, the width is 3.21m, and the transportation with poles is compliant. There is no need to dismantle the poles, and the transition is fast and saves board trucks.
Telescopic chassis+roller slewing support, strong stability, and no shaking during deep pile construction.

Economical and energy-saving, with lower fuel consumption

Isuzu 6HK1+power optimization control, fuel consumption is about 10-15% lower than similar models.

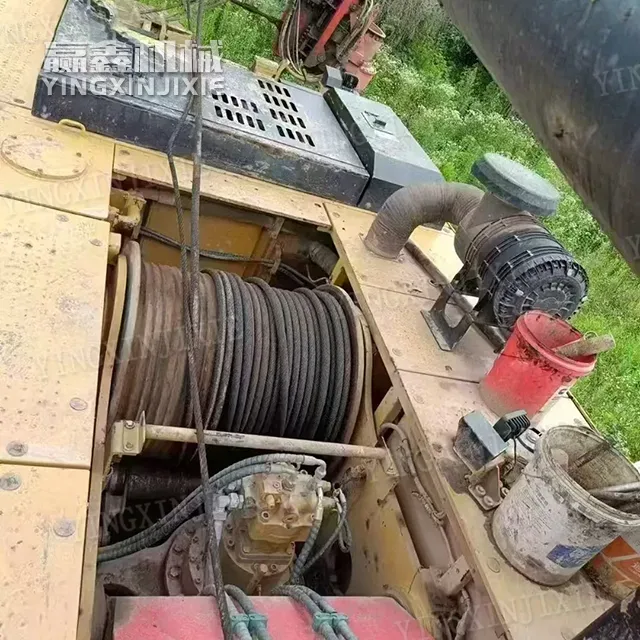

High flow hydraulic+main winch 75m/min, shorter single pile time and higher output per shift.

High reliability, worry free maintenance

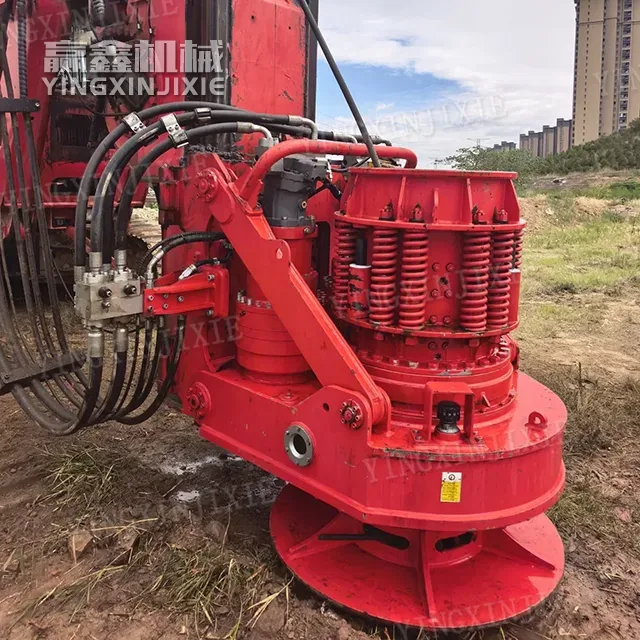

Box type mast+fifth generation power head, anti torsion and anti bending, long service life.
Three stage fuel filtration (99.99%), suitable for inferior oil products, low engine failure rate.
Centralized lubrication+easy to disassemble modular design, convenient maintenance, high attendance rate.
