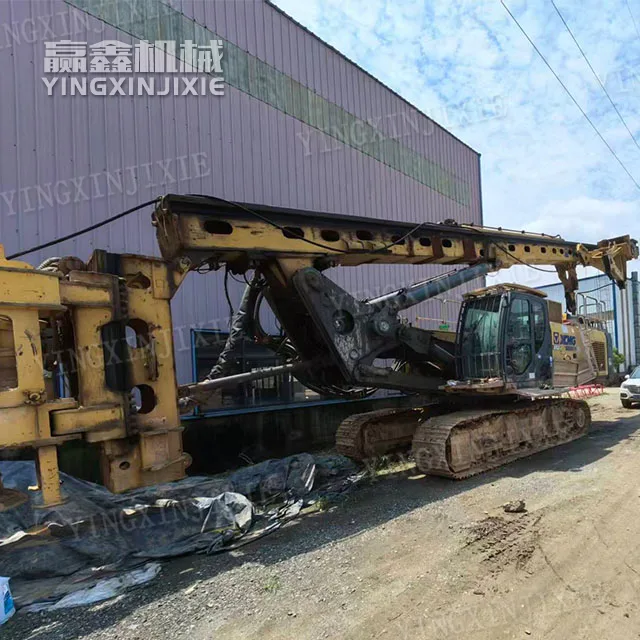

Construção robusta e adaptável: Perfuratriz rotativa XCMG XR200

The power system is strong and reliable, with full adaptability to complex working conditions

The XCMG 200 rotary drilling rig is equipped with an imported Cummins M11-C330 (optional Isuzu electric turbocharged) engine, which has sufficient power reserve and can stably output a rated power of 246kW. It has excellent fuel economy performance and can easily meet the heavy load construction needs of complex geological conditions such as hard rock layers, gravel layers, and dense soil layers. At the same time, the engine adopts mature technology design, the global parts supply system is perfect, and maintenance is convenient, greatly reducing the risk of equipment shutdown during long-term operation and ensuring the continuity of construction progress.

The hydraulic system is precise and efficient, improving both the control experience and construction efficiency

The core hydraulic components of this model are imported Kawasaki hydraulic parts, combined with industry-leading negative flow control technology. The system response speed is fast, the control accuracy is high, the power transmission loss is minimal, and the working performance of the power head is 11% higher than other models in the same industry. The lifting force of the main winch is increased by 18%, the walking driving force is increased by 20%, and the heat dissipation capacity is increased by 1.4 times. The overall construction efficiency is significantly higher than that of competitors in the same level. At the same time, the hydraulic system has undergone rigorous working condition verification and has strong stability during long-term heavy-duty operation, with a failure rate far below the industry average.

Multi functional design for one machine, adaptable to all scenarios of construction

The XCMG 200 rotary drilling rig adopts a modular functional design, which can quickly switch between various construction modes such as oil cylinder pressurization, winch pressurization, and pipe rolling machine, without the need for complex modification processes, and can adapt to different construction processes and geological conditions. At the same time, the power head can be equipped with a high-speed soil throwing function, with a maximum speed of 80r/min, which greatly improves the construction efficiency when paired with a spiral drill bit; It can be matched with drill rods and bits of different specifications, with a maximum pile diameter of 2000mm and a maximum pile depth of 59m, perfectly covering various engineering scenarios such as pile foundation construction, subway enclosure, bridge foundation, high-voltage iron tower foundation, etc., truly realizing multi-purpose use of one machine.

———————————    Para obter mais detalhes, clique no documento abaixo para visualizá-lo.     ———————————

——————————————————     Após clicar, você poderá visualizar ou baixar!     ——————————————————
