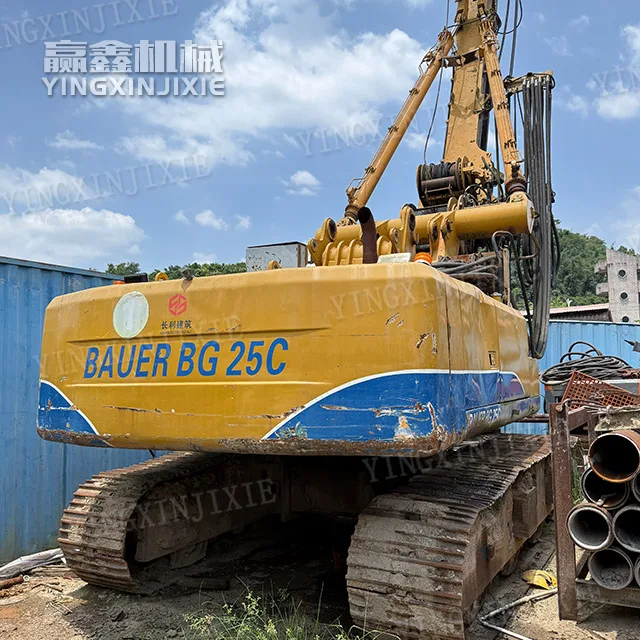

Automatic hole alignment BAUER BG25 Rotary Drill Rig

Dynamic and socketed performance

KN ・ m large torque power head, sufficient torque reserve, strong drilling capacity of clay, pebble and moderately weathered rock stratum, excellent rock socketed performance.
The two-stage damping system of the power head can buffer the impact load of rock stratum, greatly reduce the loss of drilling tools and power heads and extend the service life of accessories.
Cummins 194kW engine, stable power output, no speed loss during heavy load construction, balanced fuel consumption control.

One machine for multiple purposes, wide construction process

The factory is equipped with CFA long spiral and FDP reserved interface for hydraulic electric control of soil extrusion pile, which can switch multiple construction methods without large-scale refitting
Kjeldahl rotary drill hole, mud retaining wall deep pile
Pipe reeling machine is selected to realize the construction of full casing occlusion pile, quicksand and collapse high-risk strata
CFA long screw pile, soil compaction pile, one equipment to undertake a variety of pile foundation projects

High efficiency hydraulic system

Closed high pressure hydraulic circuit, fast response; The maximum speed of the main winch can reach 80m/min, the bucket lifting speed is fast and the pile forming efficiency is high. Compared with the same torque model, the construction speed has obvious advantages. The pressure of the pressurizing oil cylinder is 200kN and the lifting force is 250kN. It is not easy to get stuck when pulling out the casing and pulling out the drilling resistance stratum.
