| Mô-men xoắn đầu ra tối đa | 42 kN·m |
| Tổng trọng lượng máy | 156 t |
| Đường kính cọc tối đa | 3000 mm |
| Độ sâu cọc tối đa | 115 m |
| Mô hình động cơ | Volvo TAD1354 |
| Công suất định mức | 405 kW |
| Phạm vi tốc độ | 5–33 r/min |
| Lực ép tối đa | 505 kN |
| lực nâng | 260 kN |
| Speed |
70 m/min |

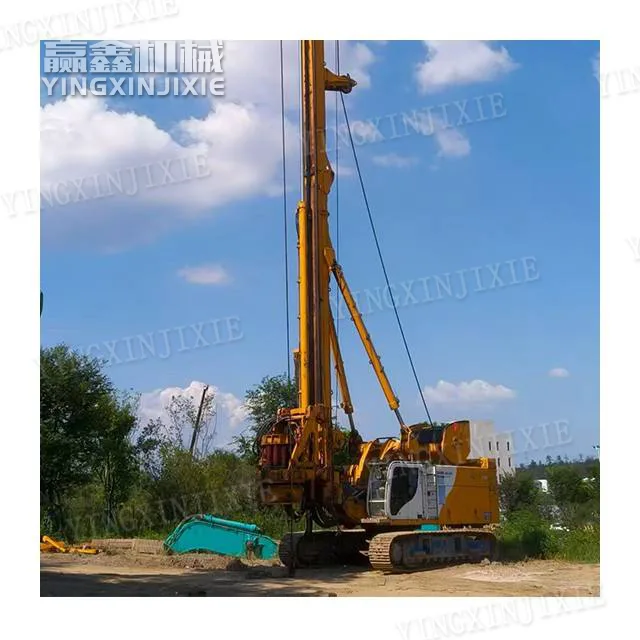

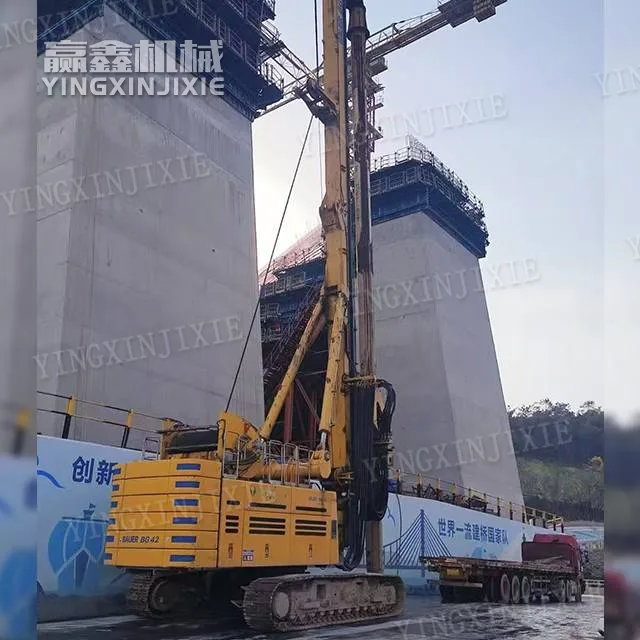

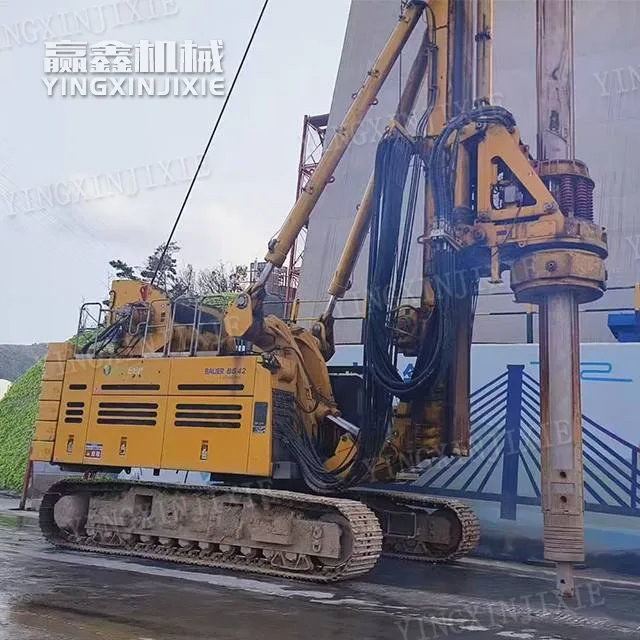

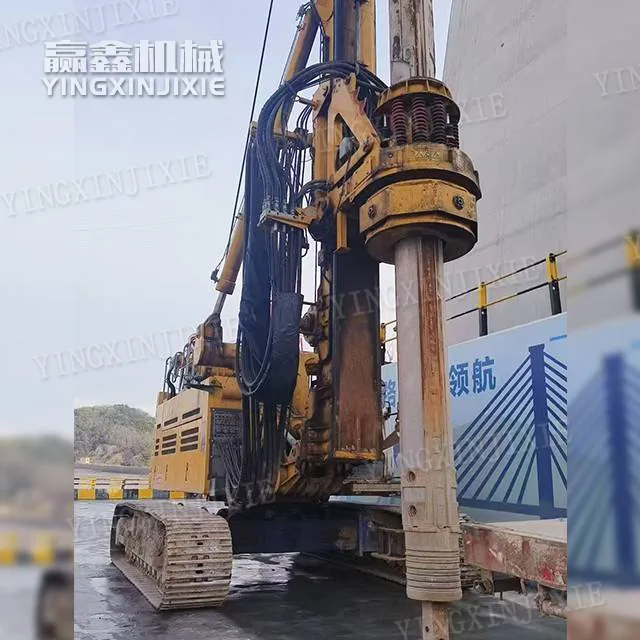

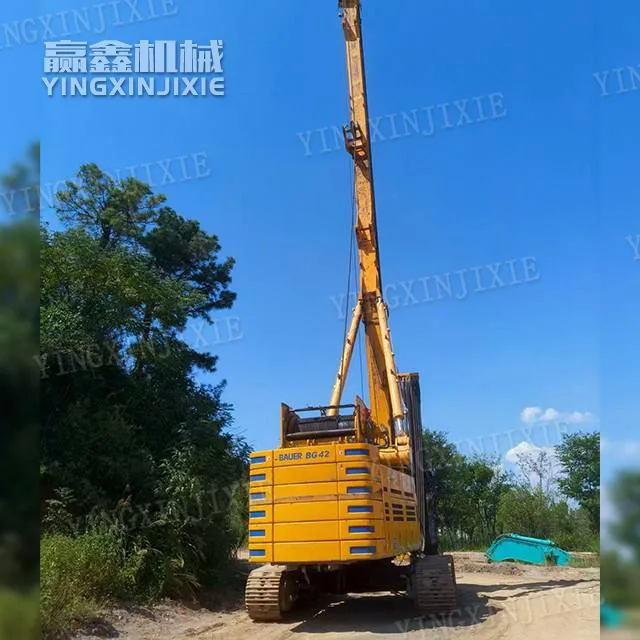

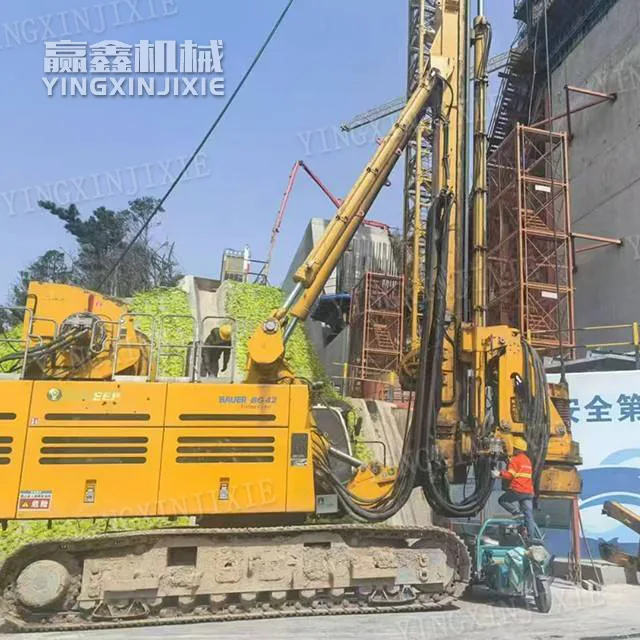

Precise & Efficient BAUER BG42 Rotary Drilling Rig
Sự miêu tả
Mô tả chi tiết
Sự miêu tả
505kN super large lifting force, deep hole, large diameter, strongly weathered strata do not get stuck in drilling, easy to lift drilling.
German heavy chassis, as stable as Mount Tai
Double wishbone and large triangular truss mast, with extremely strong rigidity and a 50% increase in anti overturning ability.
Low center of gravity, large-span track, capable of stable construction on slopes of ≥ 8%, with a verticality error of ≤ 0.8 ‰.
Intelligent electronic control, precise and efficient
Standard B-Tronic intelligent control system, automatic drilling, automatic lifting, real-time display of depth/verticality/torque.
BGM backend data management records the entire construction process, intelligently analyzes, optimizes construction methods, and improves efficiency.
Drill pipe visualization system, precise docking of locking points, zero operational errors.
EEP energy-saving black technology, extremely low fuel consumption
Exclusive EEP energy recovery system, utilizing the self weight of drill rods to generate electricity, reducing fuel consumption by 20% -30%.
Closed winch circuit, the more efficient deep hole construction, and the annual fuel savings can reach hundreds of thousands.
