| Rated Loading Capacity | 2ton |
| UNIQUE SELLING POINT | High operating efficiency |
| Span | 4.2*4.2m |
| Application | Construction |
| Overall length | 14.1m |
| Overall height | 4.15m |
| pulling speed | 80KM/H |
| Max. Lifting Height | 25m |
| Warranty | 1 Year |
| Rated Lifting Moment | Requested |
| Weight (KG) | 19000 kg |
| Color | Yellow |
| Overall width | 2.5m |
| Power Supply | 380V/50HZ |
| Warranty | 1year |
Detailed description

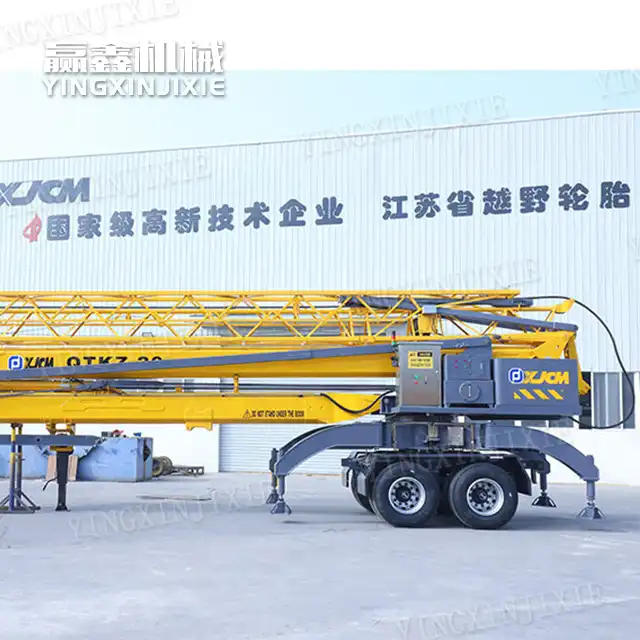

Overall towing, capable of reaching up to 80km/h at high speeds, without the need for disassembly and transportation.

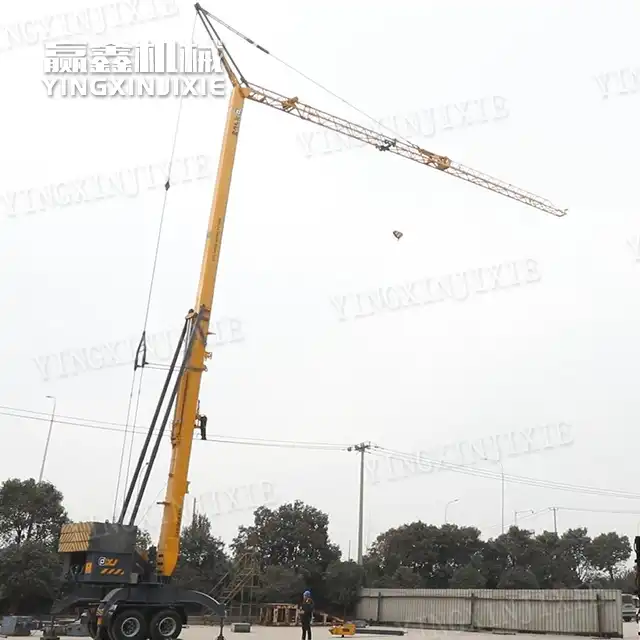

Single person wireless remote control, complete tower erection, arm extension, and leveling in 10 minutes.
Dual axle, steering angle * * ± 20 ° * *, suitable for narrow terrain.

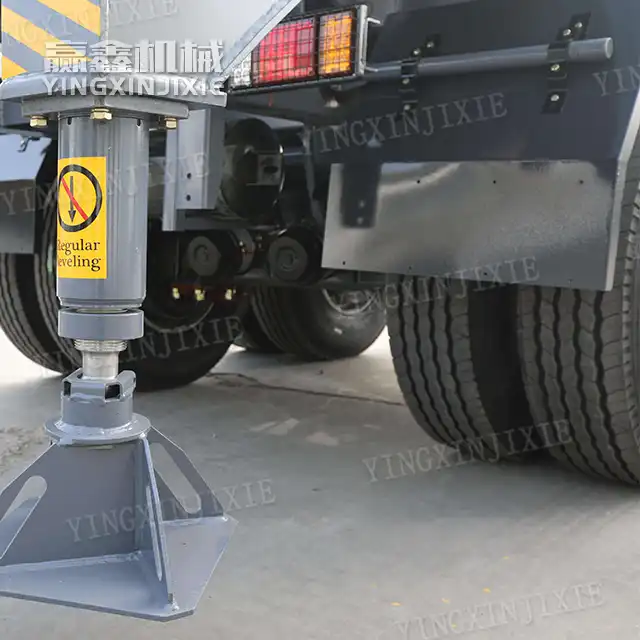

Torque limiter, hydraulic+mechanical double locking support legs, high-strength steel boom.
Small construction sites, municipal facilities, factories, narrow urban areas, and rapid lifting operations.
