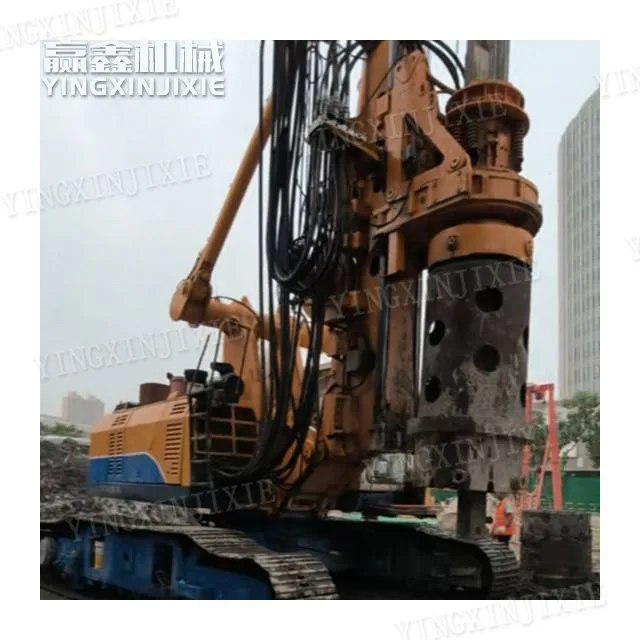

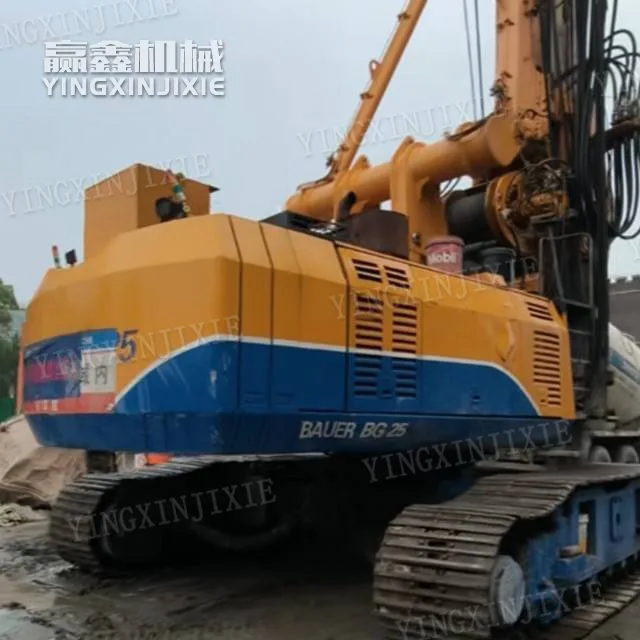

Extremely high stability BAUER BG25 Rotary Drilling Rig

Top German craftsmanship with extremely strong stability

Bao’e exclusive BT70 heavy-duty chassis, low center of gravity, large span, excellent anti overturning ability.
The large triangular truss mast has super rigidity, with a drilling verticality error of ≤ 1 ‰, and deep hole construction does not deviate.

Strong power, hard rock nemesis

With a high torque of 245kN · m and the use of Bao’e’s specialized rock socketed drill bit, it can efficiently drill hard rocks above 100MPa.
High lifting force (260kN), strong ability to handle complex formations and stuck drilling conditions.

High precision intelligent control

Equipped with the Bao’e BICS intelligent control system as standard, it integrates automatic monitoring of depth, verticality, and torque.
The power head has a long guiding design, with good hole roundness, high accuracy, and minimal sedimentation.

Efficient hydraulic system, first-class control

Load sensitive+dual pump combined hydraulic system, fast action, precise composite action, low fuel consumption.
The main winch has a single row rope and a long drum, and the steel wire rope has a long service life, smooth lifting, and is safe and reliable.

One machine with multiple uses and wide adaptability

Suitable for various construction methods such as rotary drilling, CFA long spiral, extruded pile, full casing, bite pile, etc.
It can be quickly converted into an underground continuous wall hydraulic grab bucket, greatly improving equipment utilization.
